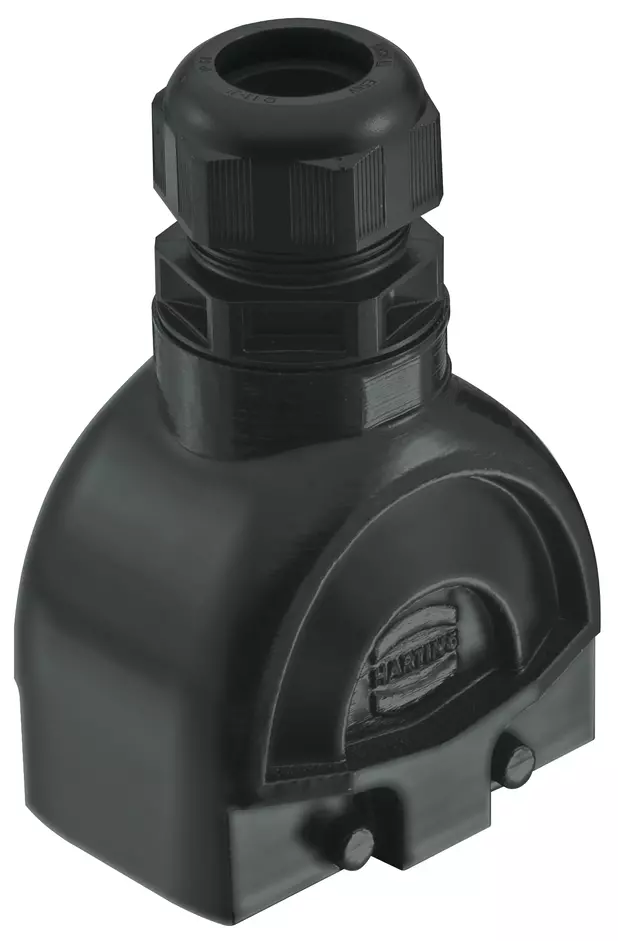

Han-Eco Mod.10-HTE-M32-glanded

Article No.: 19 41 110 0422

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Hood

Article No.: 19 41 110 0422

to see prices and availability.

to see prices and availability.

Hood

With integrated cable gland

Size: 10 B

Double locking lever

Top entry

1x M32

Material (hood/housing): Polyamide (PA), Fibre-glass reinforced

RAL 9005 (jet black)

Identification

Version

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Number of relockings	≥ 500
Degree of protection acc. to IEC 60529	IP65
Clamping range	13 ... 21 mm

Material properties

Material (hood/housing)	Polyamide (PA)
Material (hood/housing)	Fibre-glass reinforced
Colour (hood/housing)	RAL 9005 (jet black)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-2)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Specifications	IEC 61984
Specifications	EN 45545-2 Fire protection on railway vehicles
UL / CSA	UL 1977 ECBT2.E235076
UL / CSA	CSA-C22.2 No. 182.3 ECBT8.E235076
Approvals	CE

Commercial data

Packaging size	1
Net weight	72 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140131330
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
