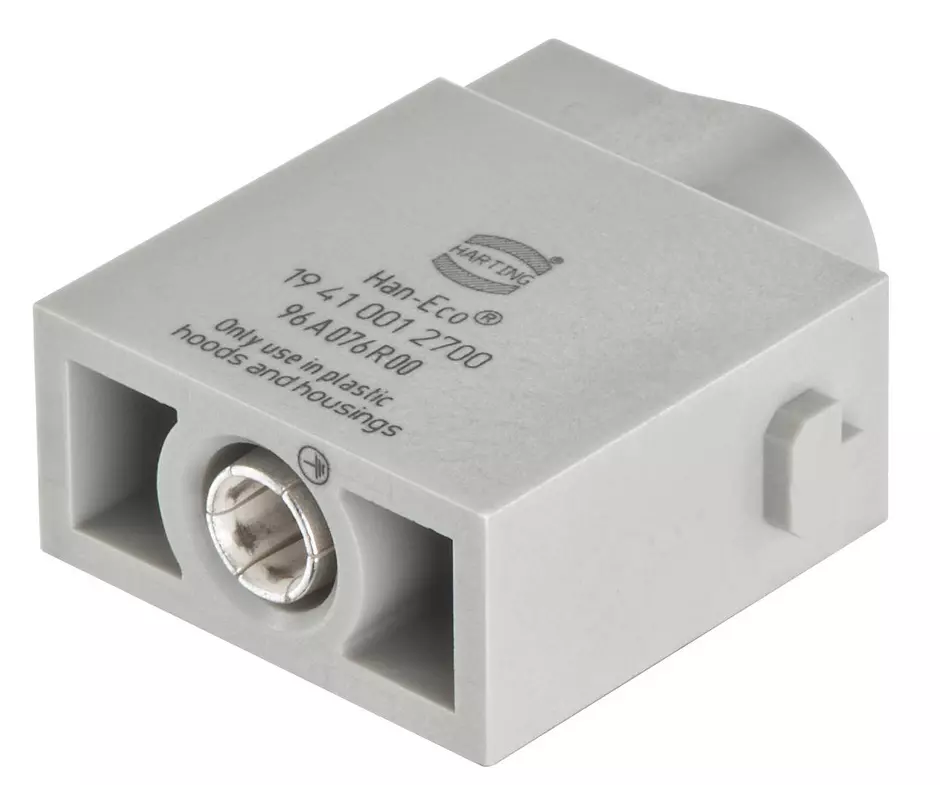

Han-Eco Mod.-PE module-f 16-6 AWG

Article No.: 19 41 001 2700

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Contact module

Article No.: 19 41 001 2700

to see prices and availability.

to see prices and availability.

Contact module

Single module

Screw termination

Female

Contacts: 1

Conductor cross-section: 1.5 ... 16 mm²

Polycarbonate (PC)

RAL 7032 (pebble grey)

Copper alloy

Identification

Version

Termination method	Screw termination
Gender	Female
Number of contacts	1
Details	With 09 99 000 0830 HARTING Crimping tool also cable up to 25 mm² with ferrule adaptable
Details	Not for Han-Modular^® hinged frames!

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
RoHS	compliant with exemption
RoHS exemptions	6(a) / 6(a)-I: Lead as an alloying element in steel for machining purposes and in galvanised steel containing up to 0,35 % lead by weight / Lead as an alloying element in steel for machining purposes containing up to 0,35 % lead by weight and in batch hot dip galvanised steel components containing up to 0,2 % lead by weight
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076

Commercial data

Packaging size	2
Net weight	25 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140130715
eCl@ss	27440217 Module for industrial connectors (power/signals)
ETIM	EC000438
UNSPSC 24.0	39121552
