Han HPR HPTC 1400 CS 185mmq M40 w/o CG

Article No.: 10 40 292 6408

New

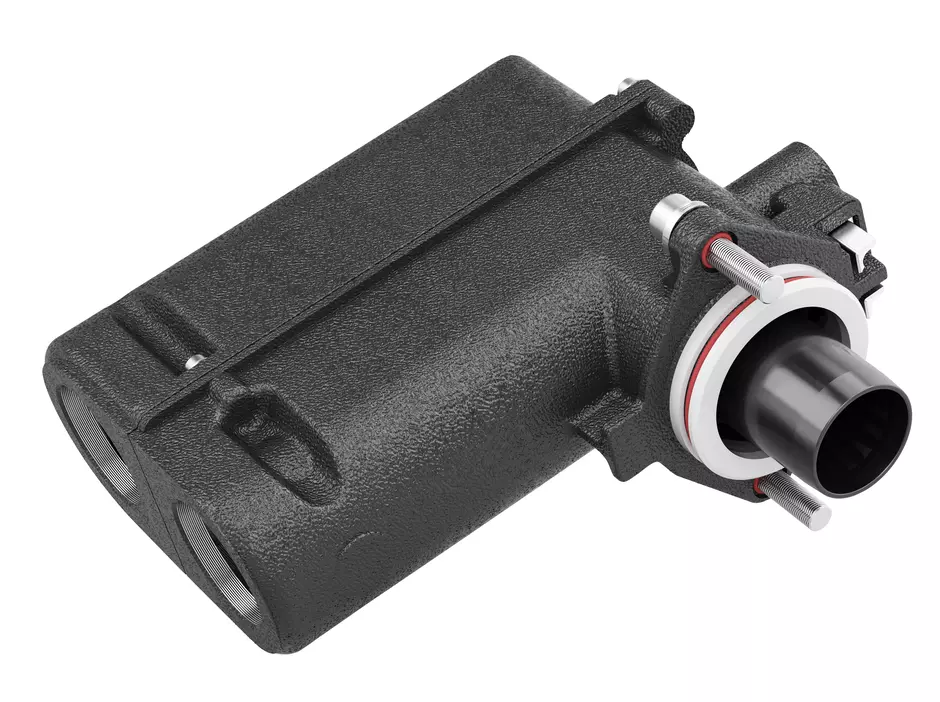

Image is for illustration purposes only. Please refer to product description.

New

Connector sets

Article No.: 10 40 292 6408

to see prices and availability.

to see prices and availability.

Connector sets

Rated current: ‌1,400 A

Complete set

Cable side

Size: 3

2x M40

Material: Aluminium die-cast, Corrosion resistant

Degree of protection: IP68, IP66, IP69

Identification

Version

Size	3
Shielding	360° shielding
Coding	16 coding options
Number of cable entries	2
Cable entry	2x M40
Field of application	Hoods/housings for harsh outdoor environments

Technical characteristics

Conductor cross-section (mm²)	[185 mm²]
Rated current	1400 A
Rated voltage	3600 V
Rated impulse voltage	20 kV
Pollution degree	4
Limiting temperature	[-40] ... [+125 °C]
Tightening torque	[‌2,2 Nm] Fixing screws M4
Tightening torque (screw locking)	14.5 Nm
Mating cycles	25
Degree of protection acc. to IEC 60529	IP68
	IP66
	IP69
Overvoltage category	III

Material properties

Specifications and approvals

Commercial data

European customs tariff number	85359000
Packaging size	1
Country of origin	Germany
eCl@ss	27440113 Rectangular connectors (set)
ETIM	EC002636
UNSPSC 24.0	39121408
