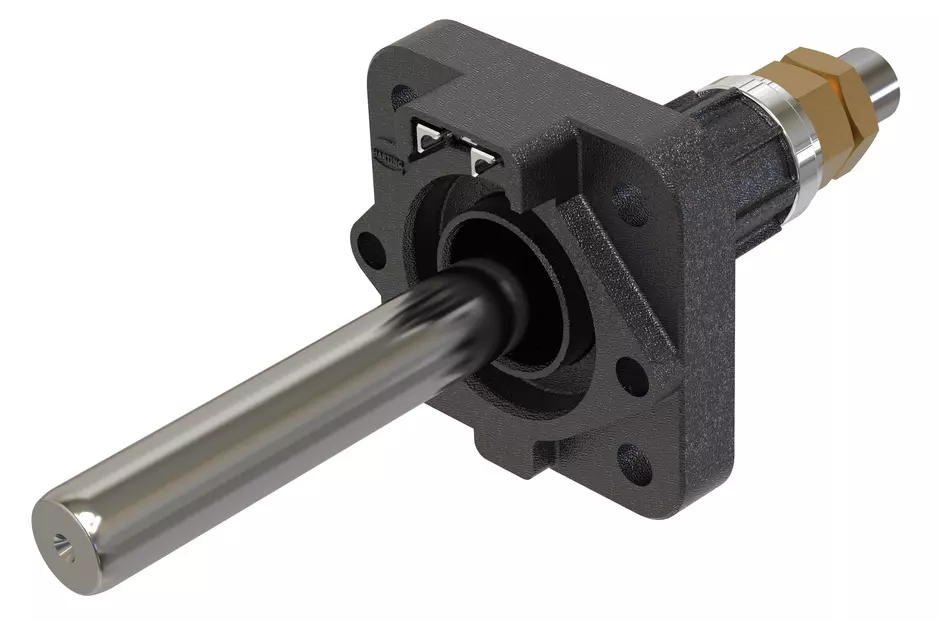

Han HPR HPTC 1400 DS (47mm thread)

Article No.: 97 00 000 1337

New

Image is for illustration purposes only. Please refer to product description.

New

Connector sets

Article No.: 97 00 000 1337

to see prices and availability.

to see prices and availability.

Connector sets

Rated current: ‌1,400 A

Complete set

Device side

Size: 3

Material: Aluminium die-cast, Corrosion resistant

Degree of protection: IP68, IP66, IP69

Identification

Category	Connector sets
Series of hoods/housings	Han^® HPR HPTC
Type of hood/housing	Complete set
Description of hood/housing	Device side
Type of cable	Copper cable (round)
Features	for stranded wires according to IEC 60228 Class 5
Features	This product is ideal for use on large busbars or wherever two cable lugs are used. Thanks to its robust design and generous connection options, it ensures a secure and reliable connection even at high currents. Please note the thread length of 47 mm.

Version

Size	3
Shielding	360° shielding
Coding	16 coding options
Field of application	Hoods/housings for harsh outdoor environments

Technical characteristics

Rated current	‌ 1,400 A
Rated voltage	3,600 V
Rated impulse voltage	20 kV
Pollution degree	4
Overvoltage category	III
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 25
Degree of protection acc. to IEC 60529	IP68
	IP66
	IP69

Material properties

Specifications and approvals

Commercial data

Packaging size	1
Country of origin	Germany
European customs tariff number	85389099
eCl@ss	27440113 Rectangular connectors (set)
ETIM	EC002636
UNSPSC 24.0	39121408
