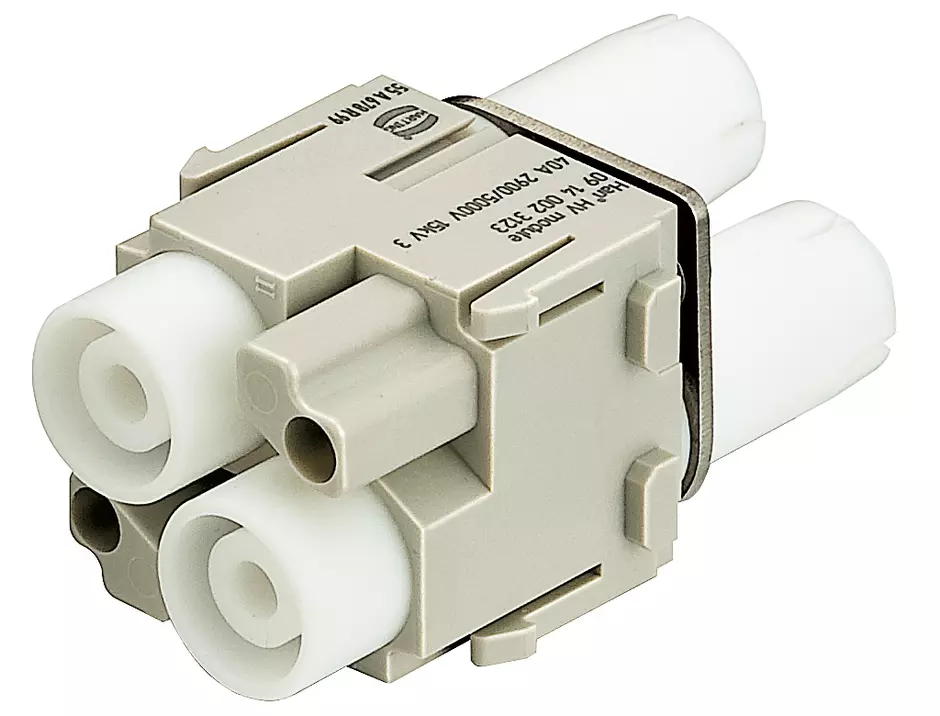

Han HV module, 40A 5000V female

Article No.: 09 14 002 3123

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Han® HV module

Article No.: 09 14 002 3123

to see prices and availability.

to see prices and availability.

Han® HV module

Double module

for Han® C crimp contacts

Crimp termination

Female

Contacts: 2

Conductor cross-section: 1.5 ... 10 mm²

Rated current: ‌40 A

Polycarbonate / Teflon (PTFE)

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	2
Details	Please order crimp contacts separately.
Pack contents	1 module
	2 locking sleeves
	2 heat shrink tubes

Technical characteristics

Conductor cross-section (mm²)	[1,5] ... [10 mm²]
Wire outer diameter	[≤9 mm]
Rated current acc. to UL	31 A
Rated current	40 A
Rated voltage conductor-earth	2900 V
Rated voltage conductor-conductor	5000 V
Rated impulse voltage	15 kV
Pollution degree	3
Rated voltage acc. to UL	5000 V
Insulation resistance	>10¹⁰ Ω
Limiting temperature	[-40] ... [+125 °C]
Mating cycles	500

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate / Teflon (PTFE)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	40 g
Country of origin	Germany
GTIN	5713140019935
eCl@ss	27440217 Module for industrial connectors (power/signals)
ETIM	EC000438
UNSPSC 24.0	39121552
