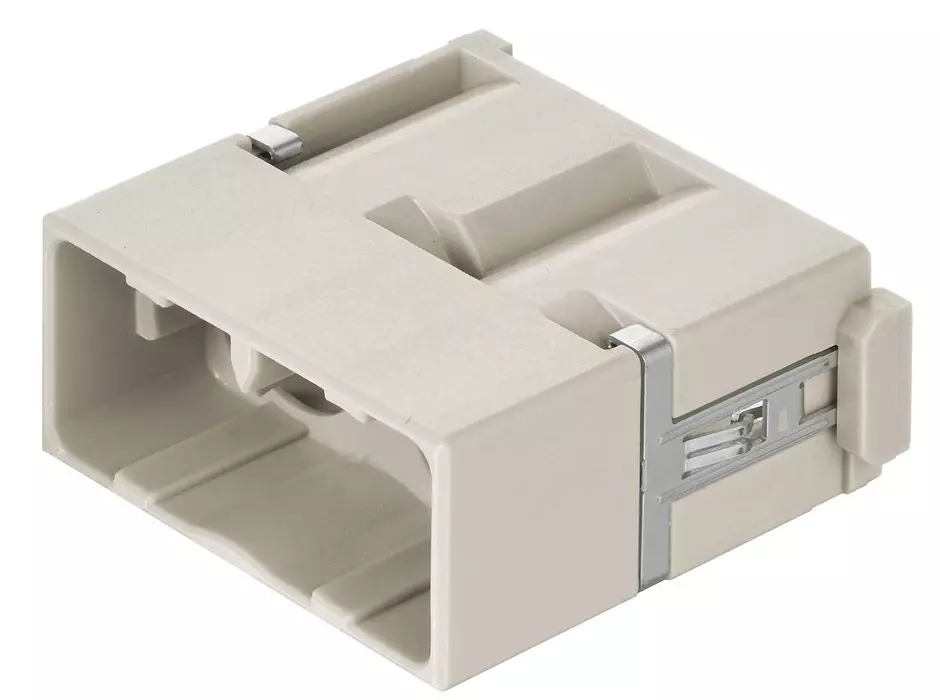

Han M12 Module, male (shield-GND)

Article No.: 09 14 002 3062

New

Image is for illustration purposes only. Please refer to product description.

New

Han® M12 module

Article No.: 09 14 002 3062

to see prices and availability.

to see prices and availability.

Han® M12 module

Single module

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Identification

Version

Gender	Male
Details	With additional shield connection to the hinged frame
Details	Please order insert separately.

Technical characteristics

Limiting temperature	[-40] ... [+85 °C]
Mating cycles	500

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Country of origin	Romania
GTIN	5713140184831
eCl@ss	27440207 Adapter for industrial connectors (module/contact insert)
ETIM	EC002312
UNSPSC 24.0	39121469
