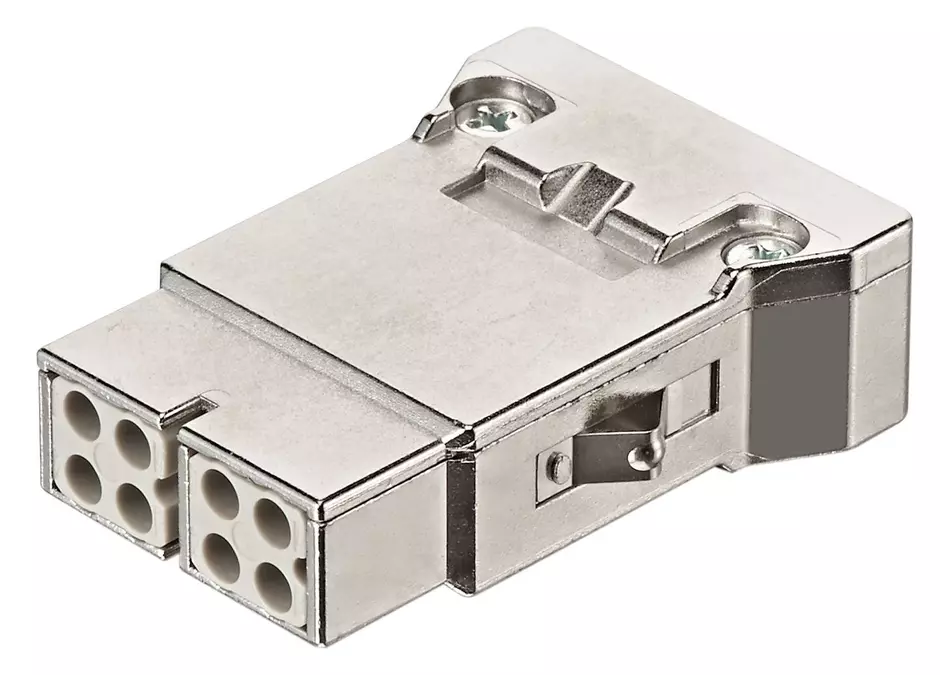

Han Megabit insert female (shield-GND)

Article No.: 09 14 008 3117

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Han® Megabit module

Article No.: 09 14 008 3117

to see prices and availability.

to see prices and availability.

Han® Megabit module

Insert, 2x 4 contacts, 2 cable entries

Crimp termination

Female

Contacts: 8 + shielding

Conductor cross-section: 0.14 ... 2.5 mm²

Rated current: ‌10 A

Polycarbonate (PC)

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	8
further contacts	+ shielding
Details	With additional shield connection to the hinged frame
	Please order crimp contacts separately.
	Please order adapter module separately.
Details	Not suitable for hoods/housings low construction as well as Han-Modular^® Eco, Han-Modular^® Compact and Han-Modular^® Twin.

Technical characteristics

Conductor cross-section (mm²)	[0,14] ... [2,5 mm²]
Wire outer diameter	[≤3,5 mm]
Rated current	10 A
Rated voltage	50 V
Rated impulse voltage	0.8 kV
Pollution degree	3
Rated voltage acc. to UL	30 V
Rated current acc. to UL	[2 A] AWG 26 ... AWG 20
	[6 A] AWG 18
	[8 A] AWG 16 ... AWG 14
Contact resistance, shielding	100 mΩ
Limiting temperature	[-40] ... [+85 °C]
Mating cycles	500
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	100 Mbit/s

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polycarbonate (PC)
Material (shielding)	Zinc die-cast, nickel-plated
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	4.496 g
Country of origin	Romania
GTIN	5713140020757
eCl@ss	27440218 Module for industrial connectors (data)
ETIM	EC000438
UNSPSC 24.0	39121552
