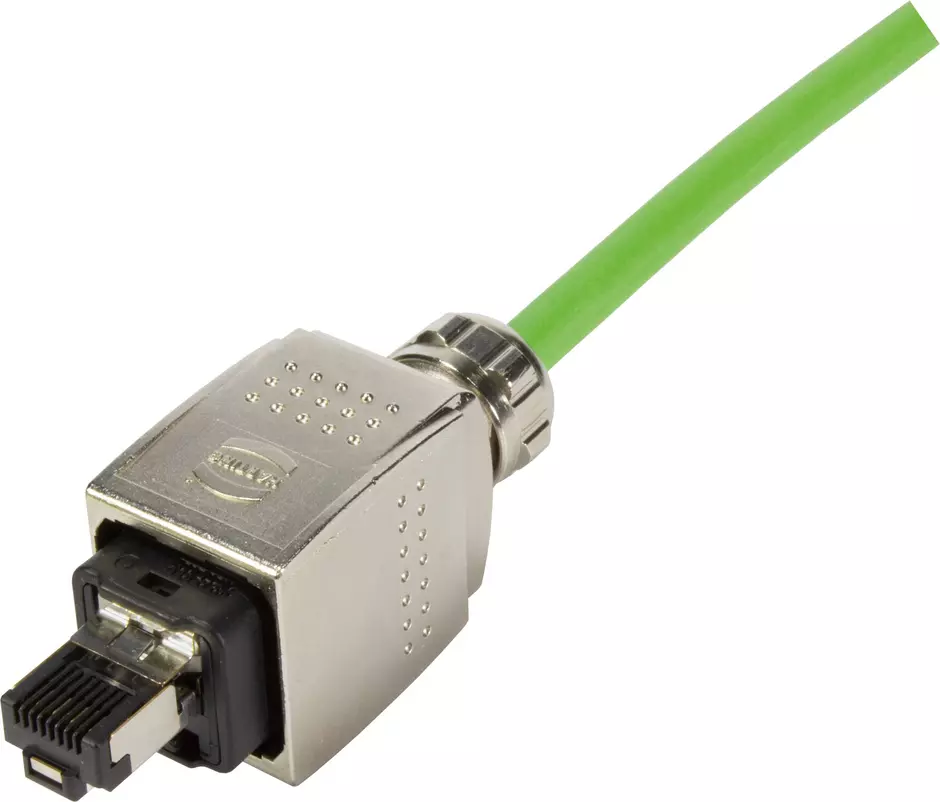

Han PP V14 RJ45 plug PN metal 6.5-9.5mm

Article No.: 09 35 226 0401

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 35 226 0401

to see prices and availability.

to see prices and availability.

Connectors

Connector sets AIDA compliant, PROFINET-Identification: PROFINET O-Plug RJ45

IDC insulation displacement termination

Rated current: ‌1.75 A

Contacts: 4

Au over Ni Mating side, Sn over Ni Termination side

PushPull

Material: Zinc die-cast

Nickel plated

Degree of protection: IP65, IP67

Identification

Category	Connectors
Series	Han^® PushPull (V14)
Identification	RJ45
Element	Connector sets
Specification	AIDA compliant
Specification	PROFINET-Identification: PROFINET O-Plug RJ45
Features	Intuitive locking mechanism
	Field assembly without tools
	Suitable for all PoE versions

Version

Termination method	IDC insulation displacement termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	4
Locking type	PushPull
Details	When installing a PROFINET system, observe the PROFINET installation guideline.
Pack contents	incl. housing and male insert

Technical characteristics

Conductor cross-section	0.22 ... 0.32 mm² Stranded
Conductor cross-section	0.26 ... 0.32 mm² Solid
Conductor cross-section [AWG]	AWG 27/7 ... AWG 22/7 Stranded
Conductor cross-section [AWG]	AWG 27/1 ... AWG 22/1 Solid
Wire outer diameter	≤ 1.6 mm
Rated current	‌ 1.75 A
Rated voltage	50 V
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-40 ... +70 °C
Storage temperature	+5 ... +50 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Cable diameter	6.5 ... 9.5 mm

Material properties

Surface (contacts)	Au over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Material (O-ring)	NBR
Material (cable seal)	TPE
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
REACH SVHC substances	2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
ECHA SCIP number	be45dcda-0f90-459a-a8bc-78fb7986a295
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	10
Net weight	9 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140223936
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
