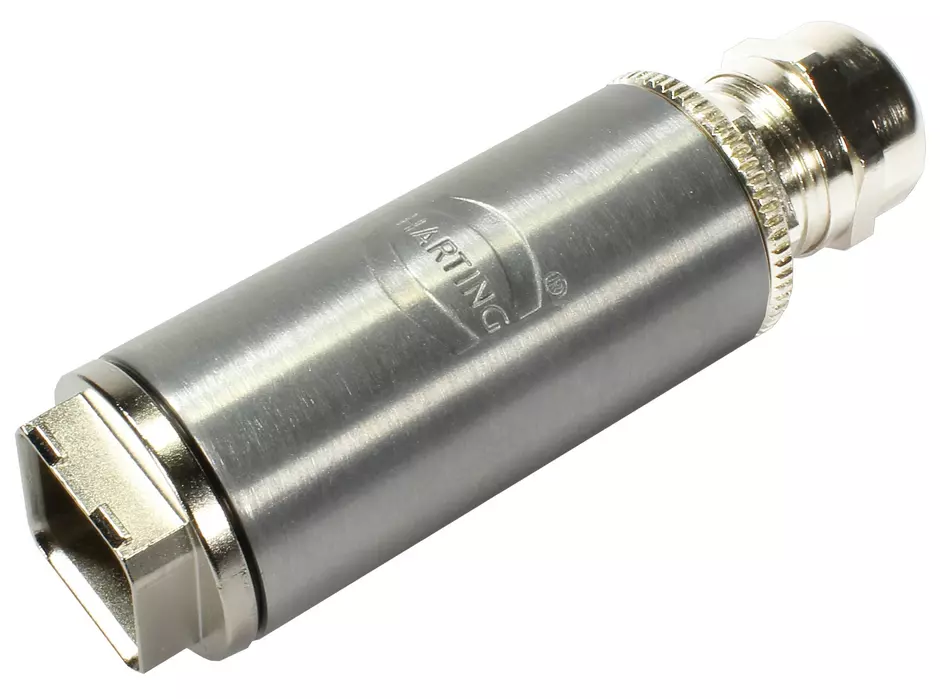

Han PushPull RJ45 V14 Aida Kupplung rund

Article No.: 61 04 201 1084 01

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 61 04 201 1084 01

to see prices and availability.

to see prices and availability.

Connectors

Connector sets AIDA compliant, Coupling

preLink® IDC insulation displacement termination

Rated current: ‌1.75 A

Contacts: 8

Au over Ni Mating side, Sn over Ni Termination side

PushPull

Top entry

Material: Aluminium die-cast

Degree of protection: IP65, IP67

Identification

Category	Connectors
Series	Han® PushPull (V14)
Series	RJ45
Element	Connector sets
Specification	AIDA compliant
Specification	Coupling
Features	Intuitive locking mechanism

Version

Termination method	preLink^® IDC insulation displacement termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
Version	Top entry
Locking type	PushPull
Pack contents	Hoods / Housings
	Female
	Cable gland

Technical characteristics

Conductor cross-section	0.22 ... 0.32 mm² Stranded
Conductor cross-section	0.26 ... 0.32 mm² Solid
Conductor cross-section [AWG]	AWG 24 ... AWG 22 Solid
Conductor cross-section [AWG]	AWG 24 ... AWG 22 Stranded
Wire outer diameter	≤ 1.6 mm
Rated current	‌ 1.75 A
Rated voltage	50 V
Transmission characteristics	Cat. 6 Class E up to 250 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Cable diameter	6 ... 12 mm

Material properties

Surface (contacts)	Au over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material (hood/housing)	Aluminium die-cast
Colour (hood/housing)	silver
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Net weight	132.6 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140223967
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
