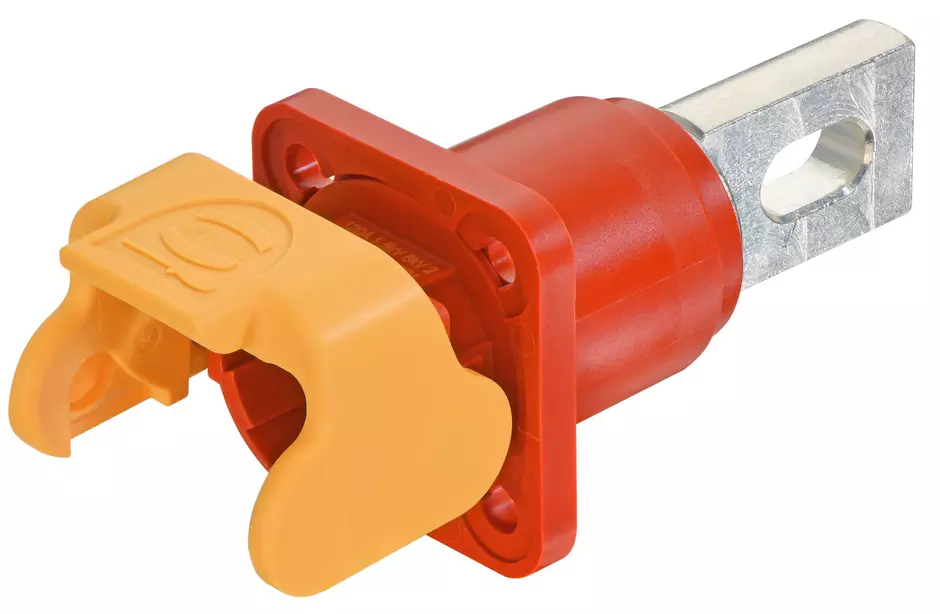

Han® S 120 HBM w. MC busbar red UP

Article No.: 09 93 001 1324

Image is for illustration purposes only. Please refer to product description.

Bulkhead mounted housing

Article No.: 09 93 001 1324

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

incl. male contact with busbar termination, With unlocking protection

Single locking lever

Material (hood/housing): Polyamide (PA)

RAL 3001 (signal red)

Identification

Category	Hoods / Housings
Series	Han^® S
Identification	Han^® S 120
Type of hood/housing	Bulkhead mounted housing
Description of hood/housing	incl. male contact with busbar termination
Description of hood/housing	With unlocking protection

Version

Technical characteristics

Rated current	‌ 120 A
Rated voltage	1,500 V
Rated impulse voltage	8 kV
Pollution degree	2
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 0.3 mΩ
Tightening torque	‌4 Nm
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Number of relockings	≥ 500
Degree of protection acc. to IEC 60529	IP40 mated condition
Degree of protection acc. to IEC 60529	IP20 unmated condition (1500 V DC; 1000 V AC)

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 3001 (signal red)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	32.39 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140183599
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
