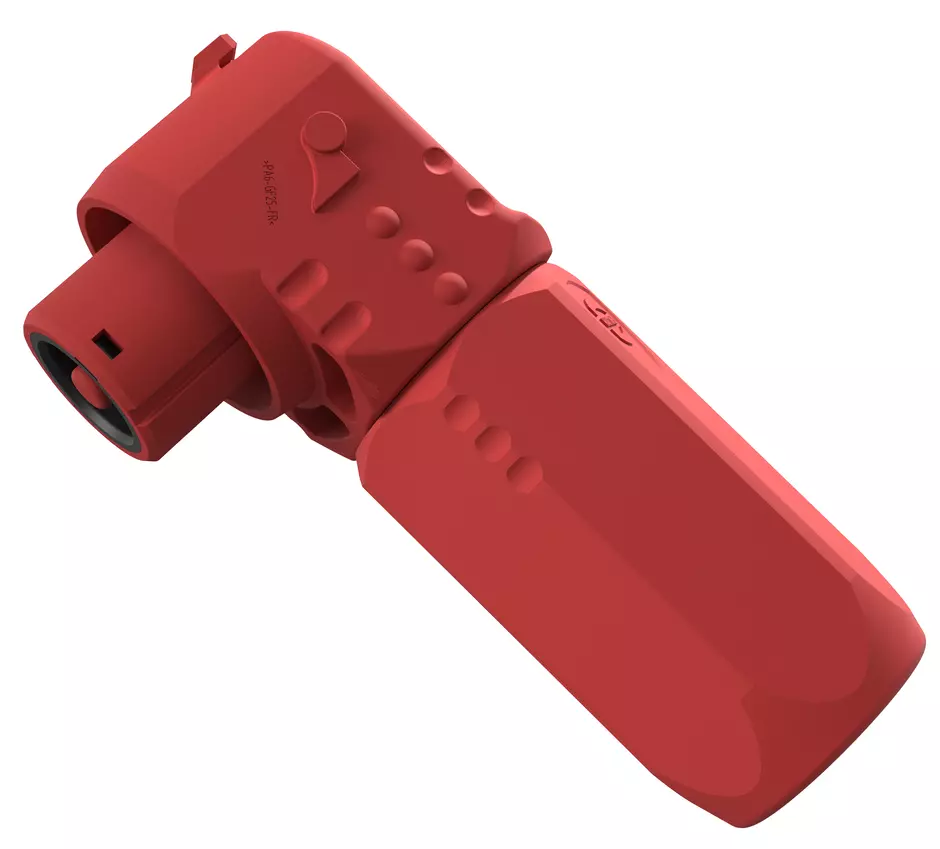

Han S 450+_CC_HA_CRT_120mm²_C2_Red

Article No.: 97 00 000 2078

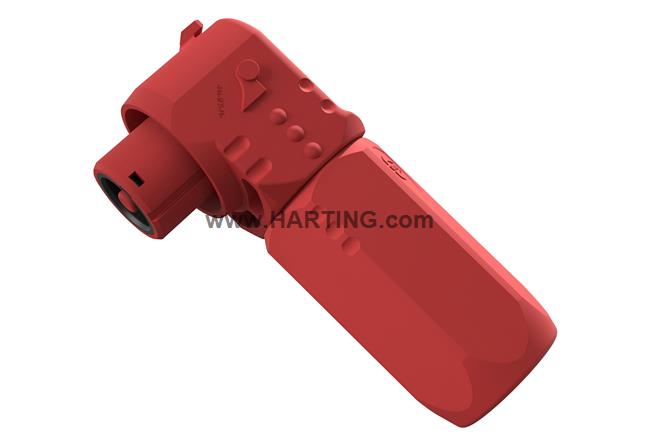

Image is for illustration purposes only. Please refer to product description.

Hood

Article No.: 97 00 000 2078

to see prices and availability.

to see prices and availability.

Hood

Angled

Single locking lever

Material (hood/housing): Polyamide (PA)

RAL 3001 (signal red)

Identification

Version

Termination method	Crimp termination
Number of contacts	1
Coding	C2 (front)
Locking type	Single locking lever
Field of application	Energy Storage Systems
Details	Please order suitable rubber sleeve separately when cable diameter is out of range.

Technical characteristics

Conductor cross-section (mm²)	120 mm²
Rated current	‌ 400 A
Rated voltage	2,000 V
Rated impulse voltage	15 kV
Pollution degree	3
Overvoltage category	III
Insulation resistance	>10⁹ Ω @ 2500 V DC
Contact resistance	≤ 0.3 mΩ
Tightening torque	‌5 Nm Cable gland
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Number of relockings	≤ 500
Degree of protection acc. to IEC 60529	IP67 / IP69K mated condition
Degree of protection acc. to IEC 60529	IP67 unmated condition & cover closed
Cable diameter	20.4 ... 21.6 mm

Material properties

Material (contacts)	Copper
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 3001 (signal red)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	215.3 g
European customs tariff number	85366990
eCl@ss	27440202 Shell for industrial connectors
