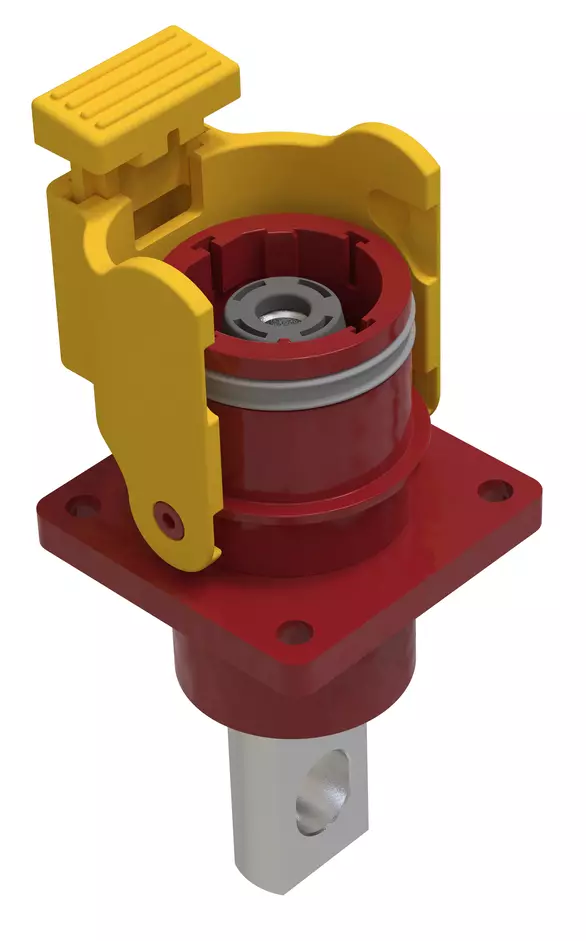

Han S 450+_CC_HBM_B1_EH_C1_RC1_Red

Article No.: 97 00 000 2087

Image is for illustration purposes only. Please refer to product description.

Bulkhead mounted housing

Article No.: 97 00 000 2087

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

incl. male contact with busbar termination

Single locking lever

Material (hood/housing): Polyamide (PA)

RAL 3001 (signal red)

Identification

Category	Hoods / Housings
Series	Han® S
Identification	Han^® S 450 Plus
Type of hood/housing	Bulkhead mounted housing
Description of hood/housing	incl. male contact with busbar termination

Version

Technical characteristics

Rated voltage	2,000 V
Rated impulse voltage	15 kV
Pollution degree	3
Overvoltage category	III
Insulation resistance	>10⁹ Ω @ 2500 V DC
Contact resistance	≤ 0.3 mΩ
Tightening torque	1.4 ... ‌1.6 Nm Fixing screws for receptacles
Tightening torque	7.5 ... ‌8 Nm Contacts
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Number of relockings	≤ 500
Degree of protection acc. to IEC 60529	IP67 / IP69K mated condition
Degree of protection acc. to IEC 60529	IP67 unmated condition & cover closed

Material properties

Material (contacts)	Copper
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 3001 (signal red)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	180 g
Country of origin	China
European customs tariff number	85366990
eCl@ss	27440202 Shell for industrial connectors
