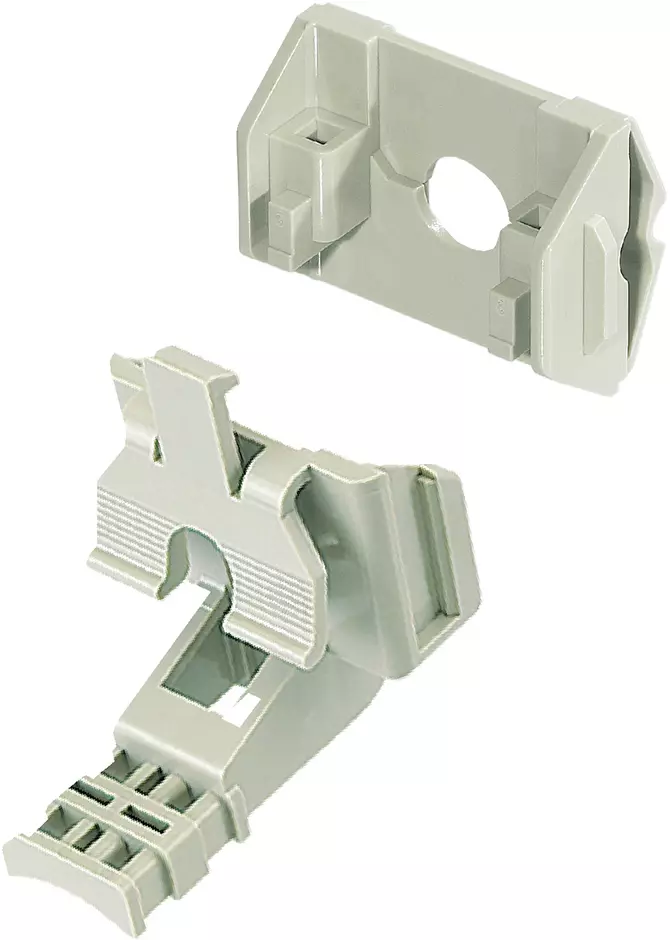

Han-Snap Latching part w. strain relief

Article No.: 09 33 000 9990

Image is for illustration purposes only. Please refer to product description.

Latching parts

Article No.: 09 33 000 9990

to see prices and availability.

to see prices and availability.

Latching parts

With strain relief, and panel mounting parts

Polycarbonate (PC)

RAL 7032 (pebble grey)

1 latching part with strain relief, 1 panel mounting part

Identification

Category	Accessories
Series	Han-Snap^®
Type of accessory	Latching parts
Description of the accessory	With strain relief
Description of the accessory	and panel mounting parts

Version

Pack contents	1 latching part with strain relief
Pack contents	1 panel mounting part

Technical characteristics

Tightening torque	0.8 Nm
Limiting temperature	-40 ... +125 °C
Degree of protection acc. to IEC 60529	IP20
Retention force	‌200 N Without guiding
Retention force	‌300 N With guiding

Material properties

Material (accessories)	Polycarbonate (PC)
Colour (accessories)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
ECHA SCIP number	60b1a572-bb3f-476f-9307-b7d1688bd90c
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Specifications	IEC 60068-2-6 Vibration (sinusoidal)
Specifications	IEC 60068-2-27 Shock

Commercial data

Packaging size	10
Net weight	20.7 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140050679
eCl@ss	27440392 Connector (accessories)
ETIM	EC002939
UNSPSC 24.0	39121400
