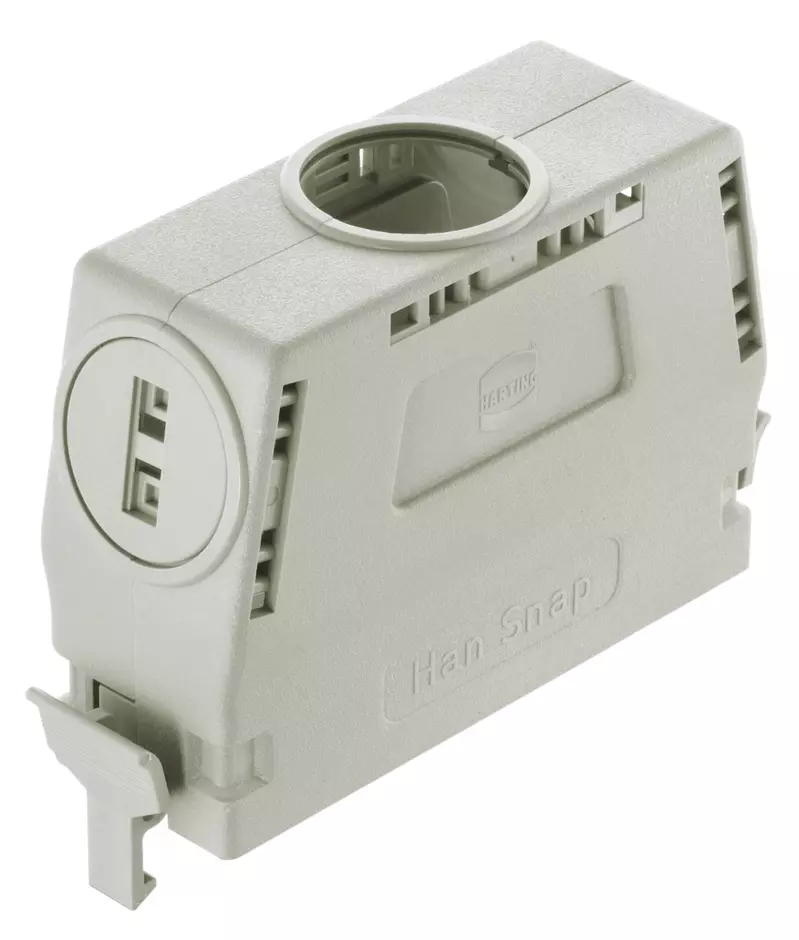

Han Snap Shell Housing Size 24B

Article No.: 09 33 024 0401

Image is for illustration purposes only. Please refer to product description.

Shell housing

Article No.: 09 33 024 0401

to see prices and availability.

to see prices and availability.

Shell housing

Size: 24 B

Snap-in latches

Top/side entry

Material (hood/housing): Polycarbonate (PC)

RAL 7032 (pebble grey)

Identification

Version

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque	‌0.8 Nm
Retention force	≥300 N locked condition

Material properties

ECHA SCIP number	2d63e3a4-7abb-4e67-bb13-55bff2df44a0
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 60068-2-6 Vibration (sinusoidal)
Specifications	IEC 60068-2-27 Shock

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	75 g
Country of origin	Germany
GTIN	5713140051720
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
