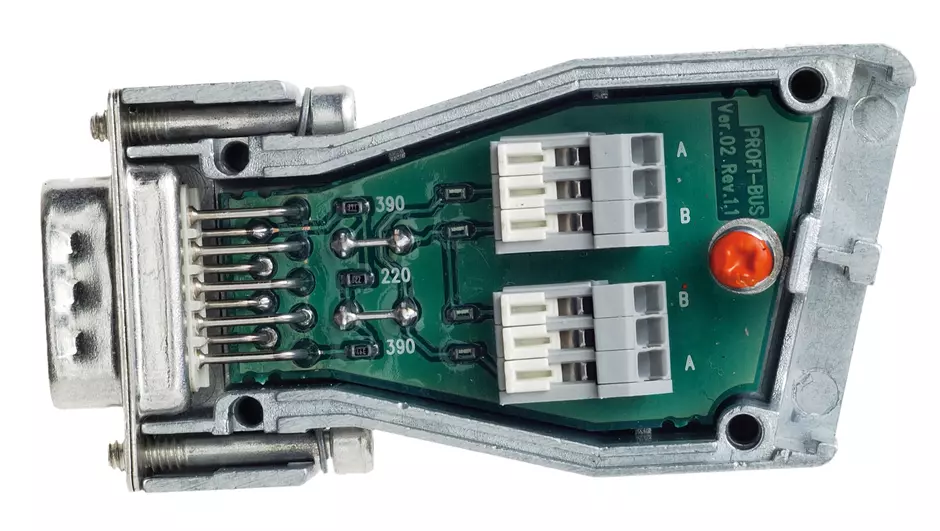

InduCom9 Profibus male PL2 UNC set

Article No.: 66 63 009 6004

Image is for illustration purposes only. Please refer to product description.

Bus interface

Article No.: 66 63 009 6004

to see prices and availability.

to see prices and availability.

Bus interface

Profibus interface

Cage-clamp termination

Male

Size: D-Sub 1

Thermoplastic resin, glass-fibre filled

Contacts: 9

Conductor cross-section: 0.08 ... 0.5 mm²

Copper alloy

Noble metal over Ni

Identification

Version

Technical characteristics

Conductor cross-section	0.08 ... 0.5 mm²
Conductor cross-section [AWG]	AWG 28 ... AWG 20
Rated voltage	< 50 V AC
Rated voltage	< 75 V DC
Stripping length	5 ... 6 mm
Tightening torque	≤0.4 Nm Locking screw
Tightening torque	≤0.3 Nm cover screw
Limiting temperature	-40 ... +85 °C
Performance level	2
Mating cycles	≥ 250
Degree of protection acc. to IEC 60529	IP40
Test voltage Ur.m.s.	0.5 kV

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni
Material (hood/housing)	Zinc die-cast
Length	61.7 mm
Width	31.6 mm
Height	14.8 mm
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	ecef7555-f643-4ceb-a337-fc54762297f1
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Commercial data

Packaging size	10
Net weight	1 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140158542
eCl@ss	27440302 D-Sub-Connector
ETIM	EC001132
UNSPSC 24.0	39121403
