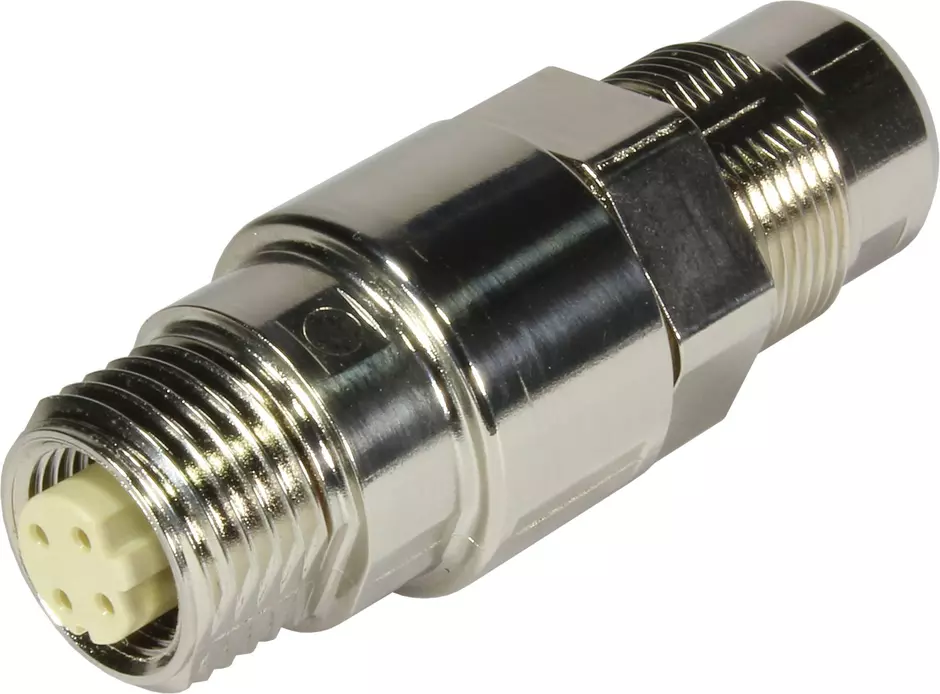

M12 D-Coded gender changer

Article No.: 21 03 381 6401

Image is for illustration purposes only. Please refer to product description.

Gender changer

Article No.: 21 03 381 6401

to see prices and availability.

to see prices and availability.

Gender changer

Panel feed through

Zinc die-cast

Identification

Category	Accessories
Series	Circular connectors M12
Connector 1	M12 D-coding
	Female
	4 poles
Type of accessory	Gender changer
Description of the accessory	Panel feed through

Version

Gender	Female
Coding	D-coding

Technical characteristics

Rated current	‌ 4 A
Rated voltage	‌ 48 V AC
Rated voltage	‌ 60 V DC
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	1
Net weight	55 g
Country of origin	Romania
European customs tariff number	85389099
GTIN	5713140138445
eCl@ss	27440292 Connector component (accessories)
ETIM	EC002943
UNSPSC 24.0	39121400
