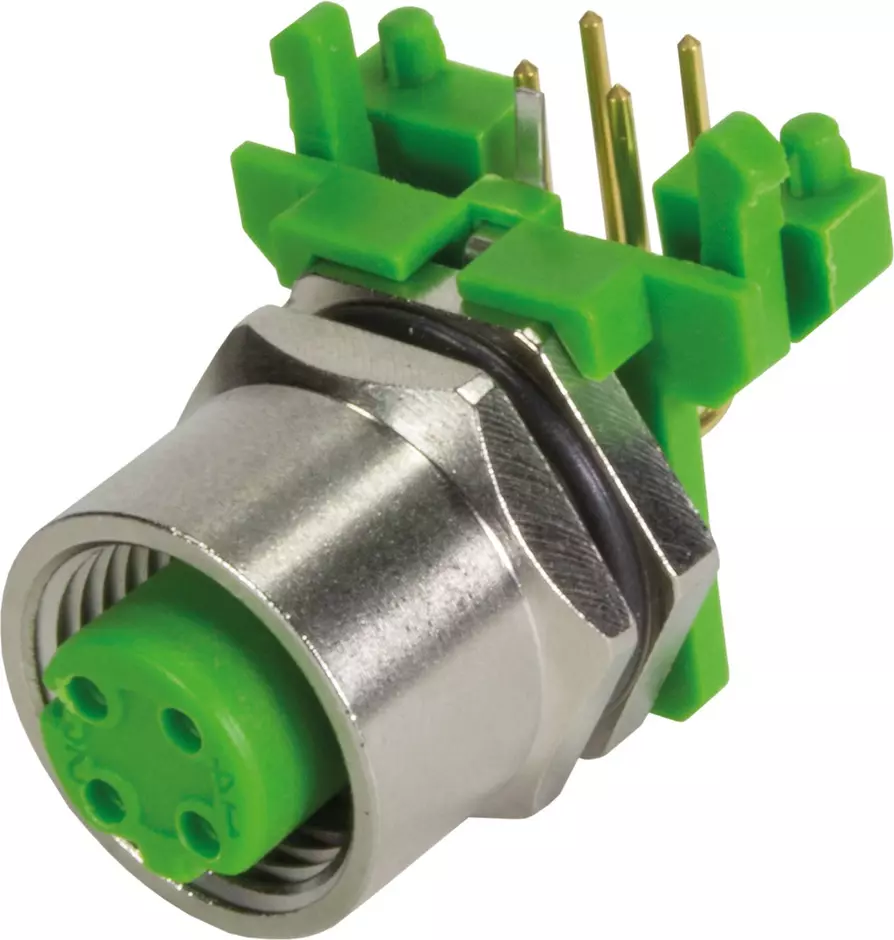

M12-PCB-THT-2PC-4P-DCOD-F-ANG-SHLD

Article No.: 21 03 381 4440

Image is for illustration purposes only. Please refer to product description.

PCB adapter

Article No.: 21 03 381 4440

to see prices and availability.

to see prices and availability.

PCB adapter

Angled, for rear mounting

Wave soldering termination

Rated current: ‌4 A

Contacts: 4

Copper alloy

Au over Ni Mating side

Coding: D-coding

Polyamide (PA)

Identification

Version

Technical characteristics

Rated current	4 A
Rated voltage	250 V
Pollution degree	3
Insulation resistance	>10⁸ Ω
Limiting temperature	[-40] ... [+85 °C]
Tightening torque	‌1 Nm Lock nut
Mating cycles	100
Degree of protection acc. to IEC 60529	IP67 mated condition
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	10 Mbit/s
Data rate	100 Mbit/s

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Copper-zinc alloy
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 61076-2-101

Commercial data

European customs tariff number	85366990
Packaging size	10
Net weight	15.868 g
Country of origin	Slovakia
GTIN	5713140229075
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
