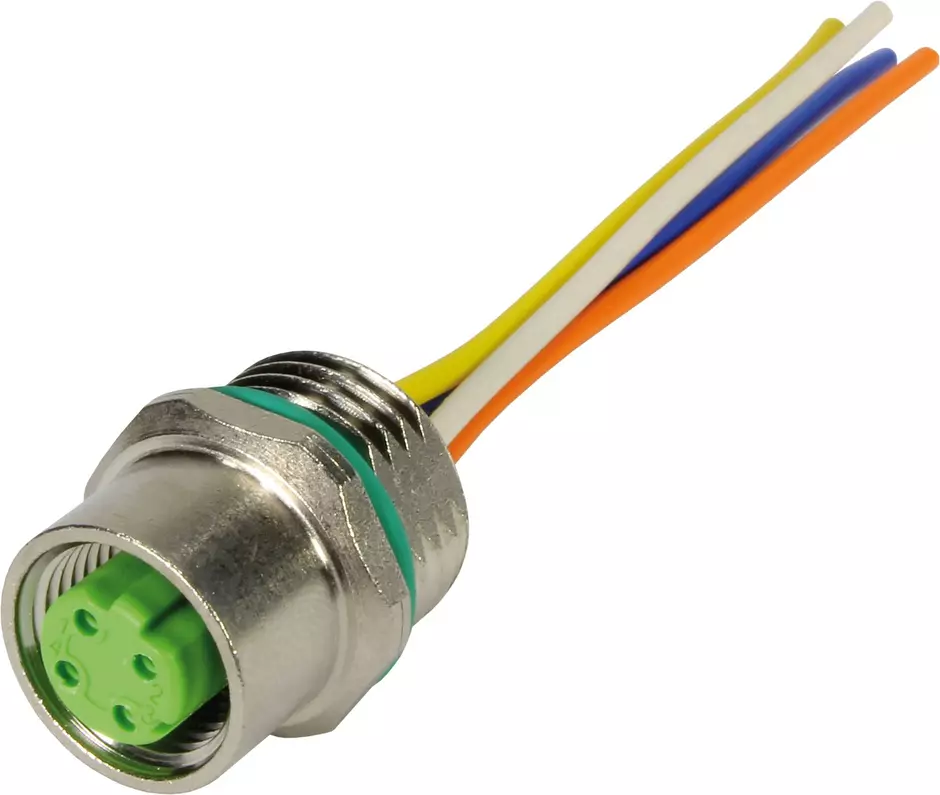

M12 PFT D-coded female straight 0,5m

Article No.: 21 03 375 2400

Image is for illustration purposes only. Please refer to product description.

Panel feed through

Article No.: 21 03 375 2400

to see prices and availability.

to see prices and availability.

Panel feed through

With conductors, for front mounting

‌50 cm

Identification

Version

Technical characteristics

Conductor cross-section	0.34 mm²
Conductor cross-section [AWG]	AWG 22
Rated current	‌ 4 A
Rated voltage	250 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Overvoltage category	III
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Tightening torque	2 Nm Lock nut
Limiting temperature	-30 ... +80 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP67 mated condition
Isolation group	I (600 ≤ CTI)
Thickness of the panel	2 ... ‌5 mm
Conductor length	‌ 50 cm

Material properties

Material (insert)	Polyamide (PA)
Material (contacts)	Brass
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	IEC 61076-2-101
Approvals	CE

Commercial data

Packaging size	1
Net weight	0.003 g
Country of origin	Czechia
European customs tariff number	85444290
GTIN	5713140138087
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
