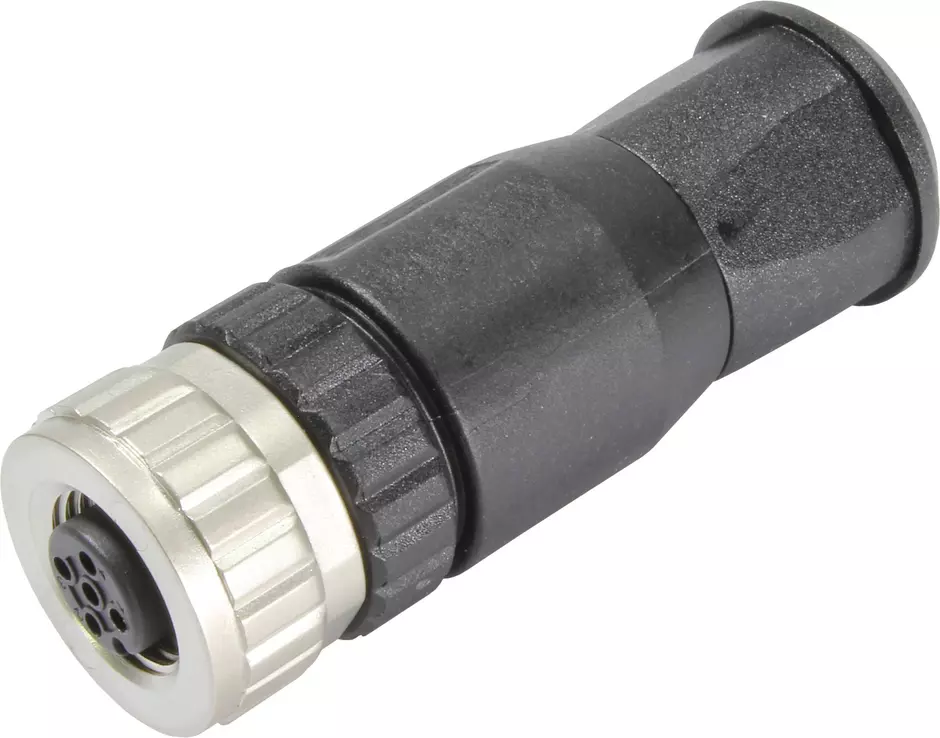

M12-Screw-4P-ACOD-F-STR

Article No.: 21 03 319 2401

Image is for illustration purposes only. Please refer to product description.

Cable connector

Article No.: 21 03 319 2401

to see prices and availability.

to see prices and availability.

Cable connector

Straight

Female

A-coding

Screw termination

Polyamide (PA)

Contacts: 4

Brass Au over Ni Mating side

Conductor cross-section: 1.5 mm² max.

Rated current: ‌7.5 A

Polyamide (PA), Zinc die-cast

Screw locking

Degree of protection: IP67 mated condition

Identification

Version

Technical characteristics

Conductor cross-section	1.5 mm² max.
Conductor cross-section [AWG]	AWG 16
Rated current	‌ 7.5 A
Rated voltage	250 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Overvoltage category	III
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Tightening torque	0.6 Nm
Wrench size (knurled screw / knurled nut)	18
Limiting temperature	-30 ... +85 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP67 mated condition
Cable diameter	4 ... 8 mm
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Polyamide (PA)
Material (contacts)	Brass
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Polyamide (PA)
Material (hood/housing)	Zinc die-cast
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	3 g
Country of origin	Slovakia
European customs tariff number	85366990
GTIN	5713140225114
eCl@ss	27440116 Circular connector (for field assembly)
ETIM	EC002635
UNSPSC 24.0	39121413
