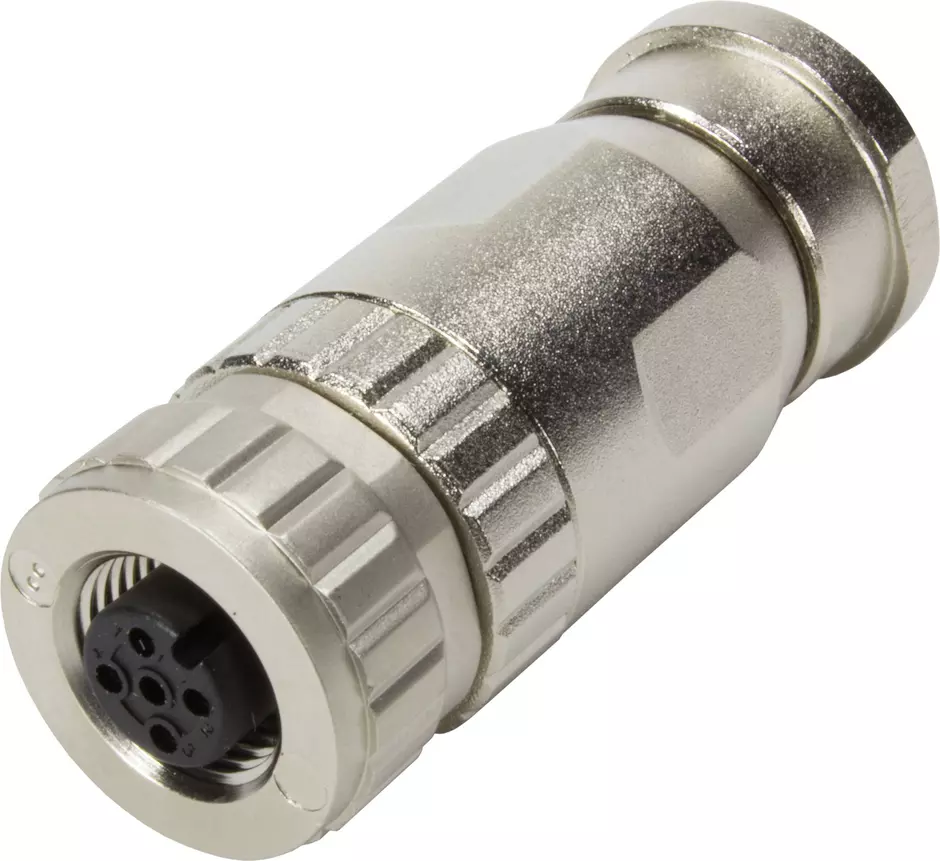

M12-Screw-4P-ACOD-F-STR-SHLD

Article No.: 21 03 329 2401

Image is for illustration purposes only. Please refer to product description.

Cable connector

Article No.: 21 03 329 2401

to see prices and availability.

to see prices and availability.

Cable connector

Straight

Female

A-coding

Screw termination

Polyamide (PA)

Contacts: 4

Brass Au over Ni Mating side

Conductor cross-section: 1.5 mm² max.

Rated current: ‌4 A

Zinc die-cast

Screw locking

Degree of protection: IP67 mated condition

Identification

Version

Technical characteristics

Conductor cross-section (mm²)	[1,5 mm²] max.
Conductor cross-section (AWG)	AWG 16
Rated current	4 A
Rated voltage	250 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Insulation resistance	>10⁸ Ω
Contact resistance	10 mΩ
Limiting temperature	[-30] ... [+85 °C]
Tightening torque	[0,6 Nm]
Wrench size (knurled screw / knurled nut)	18
Mating cycles	100
Degree of protection acc. to IEC 60529	IP67 mated condition
Cable diameter	[4] ... [8 mm]
Overvoltage category	III
Isolation group	I (600 ≤ CTI)

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Brass
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	52 g
Country of origin	Slovakia
GTIN	5713140225138
eCl@ss	27440116 Circular connector (for field assembly)
ETIM	EC002635
UNSPSC 24.0	39121413
