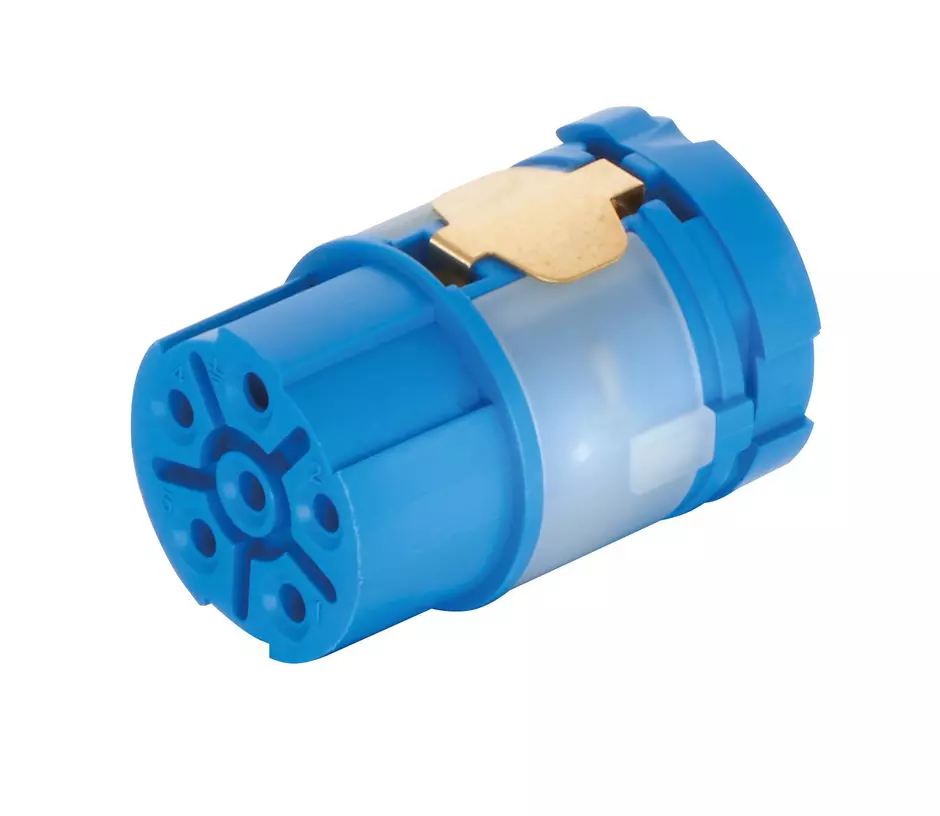

M23 P 5+PE Female -C

Article No.: 09 15 606 3101

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 15 606 3101

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Polyamide (PA)

Blue

Rated current: ‌28 A

Contacts: 6

Conductor cross-section: 0.75 ... 4 mm²

Identification

Version

Termination method	Crimp termination
Gender	Female
With wire protection	false
Number of contacts	6
Number of special contacts	1x PE contact
Number of power contacts	5
Specification of special contacts	PE contact
PE contact	false
FE contact	false
Details	Please order crimp contacts separately.
Details	6x 2 mm

Technical characteristics

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
Material (insert)	Polyamide (PA)
Colour (insert)	Blue
Material flammability class acc. to UL 94	V-0

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076

Commercial data

European customs tariff number	85366990
Packaging size	5
Net weight	6.118 g
Country of origin	Germany
GTIN	5713140187375
eCl@ss	27440223 Contact insert for circular connectors
ETIM	EC003557
UNSPSC 24.0	39121421
