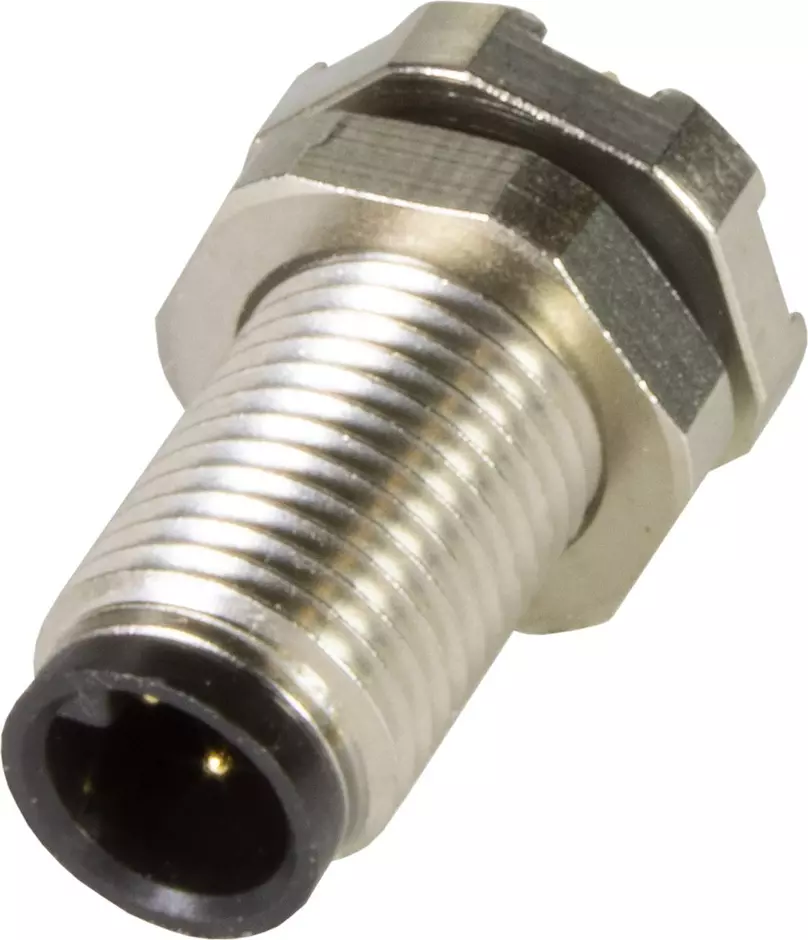

M5-PCB-THT-1PC-4P-ACOD-M-STR

Article No.: 21 47 000 0005

New

Image is for illustration purposes only. Please refer to product description.

New

PCB adapter

Article No.: 21 47 000 0005

to see prices and availability.

to see prices and availability.

PCB adapter

Straight, for rear mounting

Wave soldering termination

Rated current: ‌1 A

Contacts: 4

Copper alloy

Gold plated

Coding: A-coding

Polyamide (PA)

Identification

Version

Technical characteristics

Rated current	1 A
Rated voltage	60 V
Rated impulse voltage	0.8 kV
Pollution degree	3
Insulation resistance	>10⁸ Ω
Contact resistance	3 mΩ
Limiting temperature	[-25] ... [+85 °C]
Mating cycles	100
Degree of protection acc. to IEC 60529	IP67 mated condition
Overvoltage category	II
Isolation group	I (600 ≤ CTI)

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Gold plated
Material (hood/housing)	Brass, nickel plated

Specifications and approvals

PROFINET	false
Specifications	IEC 61076-2-105

Commercial data

European customs tariff number	85366990
Packaging size	1
Country of origin	Germany
GTIN	5713140224742
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
