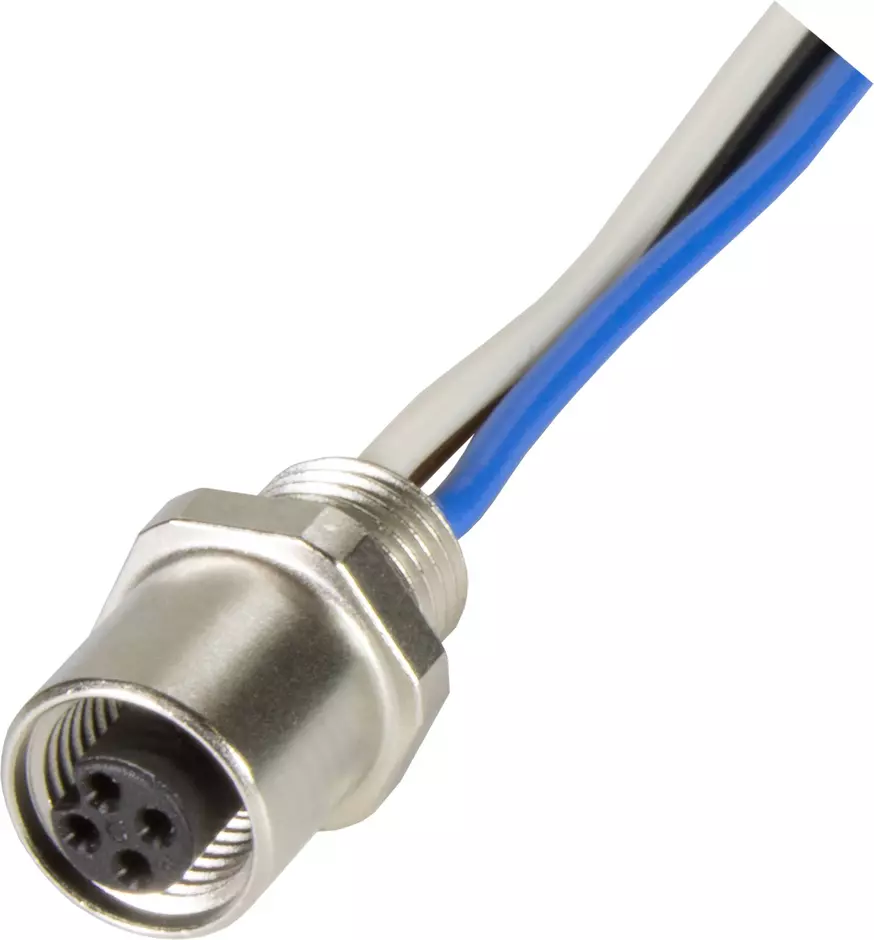

M5-PFT-CRIMP-4P-ACOD-F-0.2

Article No.: 21 47 000 0007

New

Image is for illustration purposes only. Please refer to product description.

New

Panel feed through

Article No.: 21 47 000 0007

to see prices and availability.

to see prices and availability.

Panel feed through

With conductors, for front mounting

‌20 cm

Identification

Version

Technical characteristics

Conductor cross-section	0.14 mm²
Conductor cross-section [AWG]	AWG 26
Rated current	‌ 1 A
Rated voltage	60 V
Rated impulse voltage	0.8 kV
Pollution degree	3
Overvoltage category	II
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 3 mΩ
Limiting temperature	-25 ... +85 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP67 mated condition
Isolation group	I (600 ≤ CTI)
Conductor length	‌ 20 cm

Material properties

Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Gold plated
Material (hood/housing)	Brass, nickel plated
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	IEC 61076-2-105

Commercial data

Packaging size	1
Country of origin	Germany
European customs tariff number	85444290
GTIN	5713140224698
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
