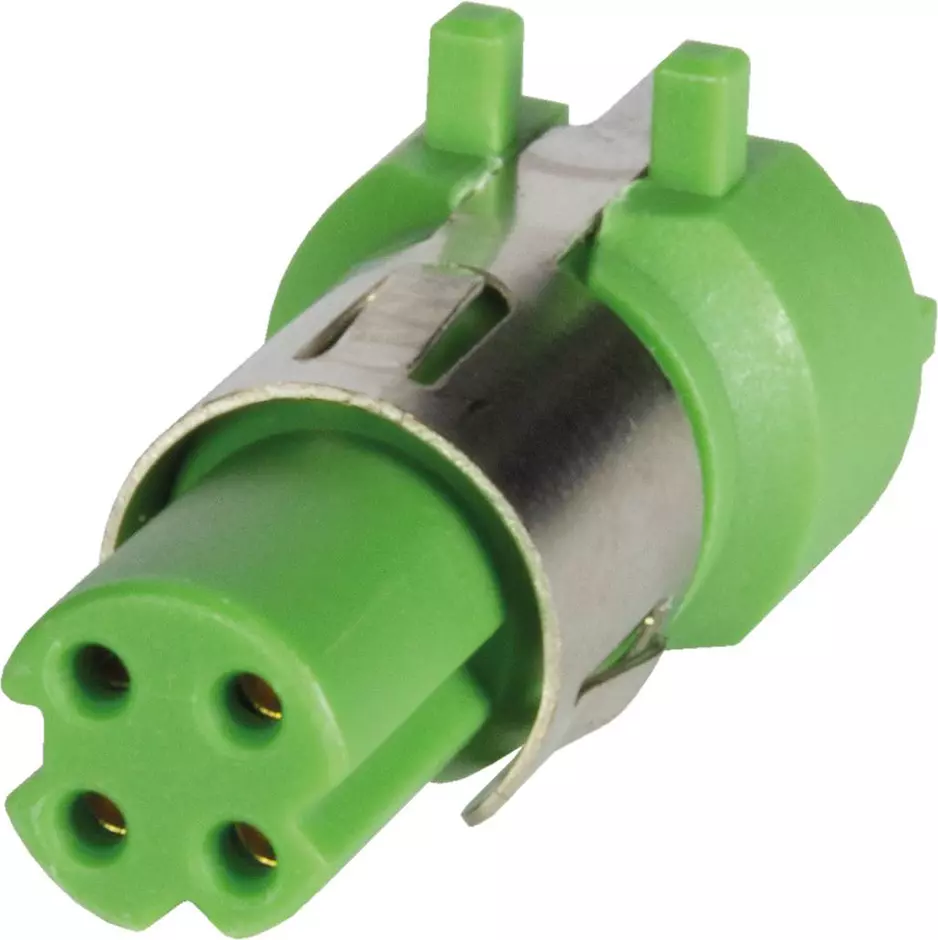

M8 PCB Adapter 4pol Dcod. female PaPC

Article No.: 21 02 381 2418

Image is for illustration purposes only. Please refer to product description.

PCB connector

Article No.: 21 02 381 2418

to see prices and availability.

to see prices and availability.

PCB connector

Straight

Reflow soldering termination (THR)

Rated current: ‌4 A

Contacts: 4

Copper alloy

Au over Ni Mating side

Coding: D-coding

Identification

Version

Termination method	Reflow soldering termination (THR)
Gender	Female
Shielding	Shielded
Number of contacts	4
Coding	D-coding
Details	Order housings separately
Pack contents	50 pieces in a tray

Technical characteristics

Rated current	4 A
Rated voltage	60 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Insulation resistance	>10⁸ Ω
Contact resistance	10 mΩ
Limiting temperature	[-40] ... [+85 °C]
Mating cycles	100
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	10 Mbit/s
Data rate	100 Mbit/s

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side

Specifications and approvals

PROFINET	true
Specifications	IEC 61076-2-114

Commercial data

European customs tariff number	85366990
Packaging size	50
Net weight	7 g
Country of origin	Romania
GTIN	5713140224933
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
