MPP-PFT-ix-F-P

Article No.: 09 51 521 0001

New

Image is for illustration purposes only. Please refer to product description.

New

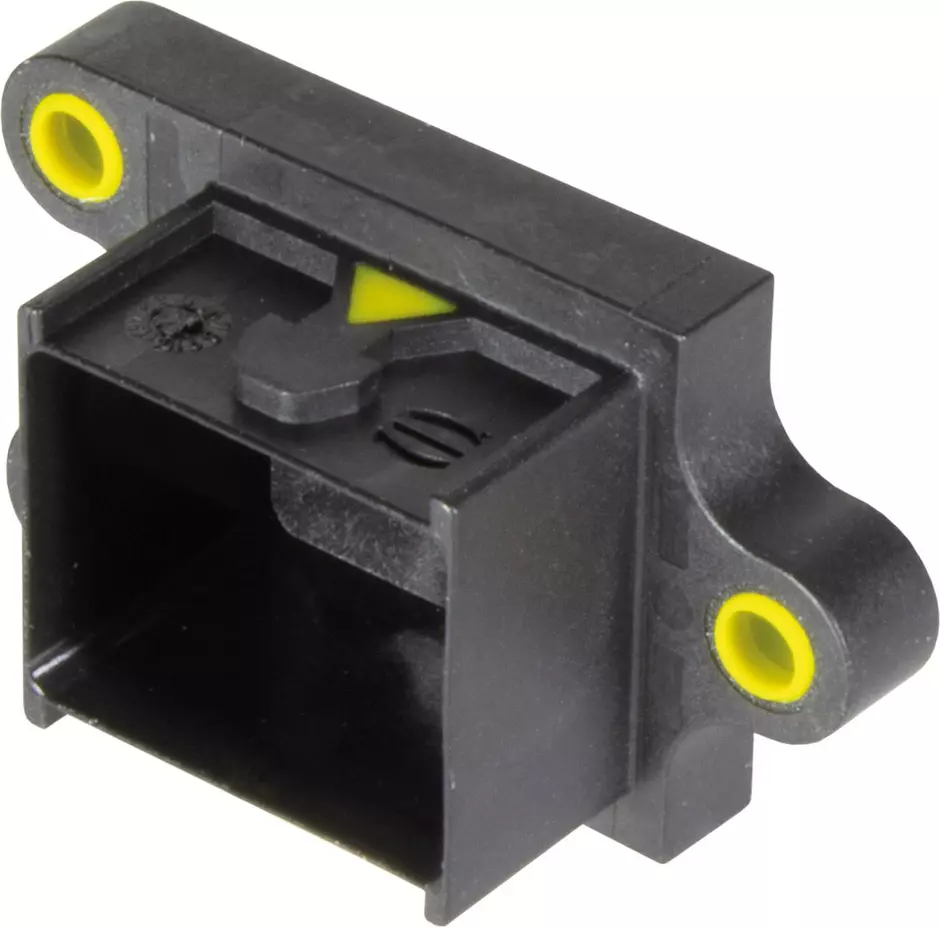

Bulkhead mounted housing

Article No.: 09 51 521 0001

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Without board locks

PushPull

Material (hood/housing): Polybutylene terephthalate (PBT)

Black

Material (seal): PTS

Identification

Version

Locking type	PushPull

Technical characteristics

Limiting temperature	[-40] ... [+70 °C]
Storage temperature	-60 ... +85 °C
Mating cycles	750
Degree of protection acc. to IEC 60529	IP65 / IP67
Vibration resistance	10-500 Hz, 5 g, 0.35 mm, 2h/axis
Vibration resistance	5.72 m/s² acc. to IEC 61373 Category 1 Class B
Shock resistance	50 g / 11 ms, 3 shocks / axis and direction
Shock resistance	5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Material (hood/housing)	Polybutylene terephthalate (PBT)
Colour (hood/housing)	Black
Material (seal)	PTS
Colour (seal)	Yellow
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	4.94 g
Country of origin	Romania
GTIN	5713140224100
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
