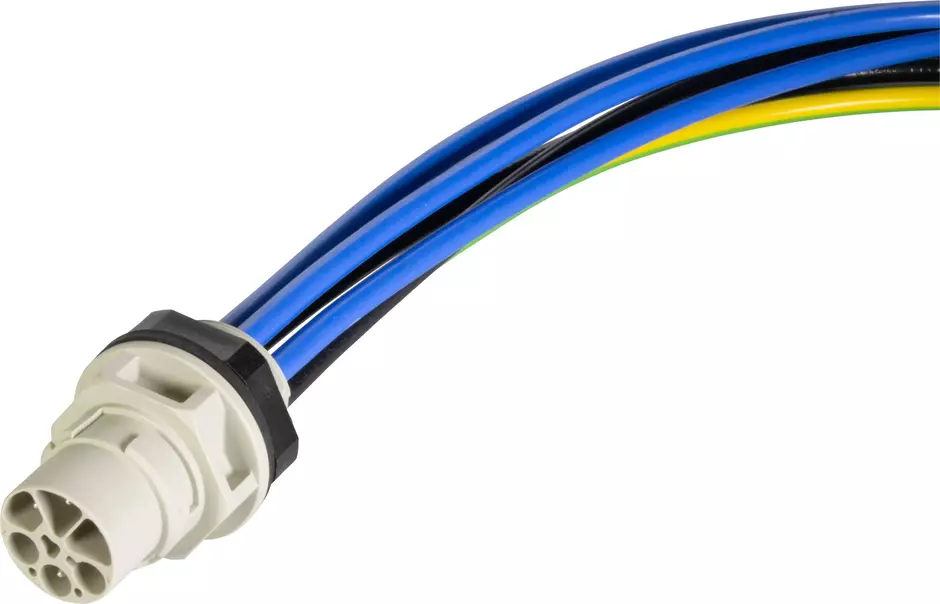

S15_PFT_STR-FM_DC_M_6P_2.5mm²_0.25m

Article No.: 97 00 000 1407

Image is for illustration purposes only. Please refer to product description.

Panel feed through

Article No.: 97 00 000 1407

to see prices and availability.

to see prices and availability.

Panel feed through

With conductors, for front mounting

‌25 cm

Identification

Version

Technical characteristics

Conductor cross-section	2.5 mm²
Conductor cross-section [AWG]	AWG 14
Pollution degree	3
Rated current (signal)	4 A
Rated voltage (signal)	‌ 48 V AC/DC
Rated impulse voltage (signal)	0.8 kV
Pollution degree (signal)	3
Rated current (power)	20 A
Rated voltage (power)	‌ 48 V AC/DC
Rated voltage conductor-conductor (Power)	48 V
Rated impulse voltage (power)	0.8 kV
Pollution degree (power)	3
Tightening torque	‌2 Nm Lock nut
Limiting temperature	-30 ... +90 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Isolation group	I (600 ≤ CTI)
Thickness of the panel	1 ... ‌10 mm
Conductor length	‌ 25 cm

Material properties

Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Country of origin	Romania
European customs tariff number	85366990
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
