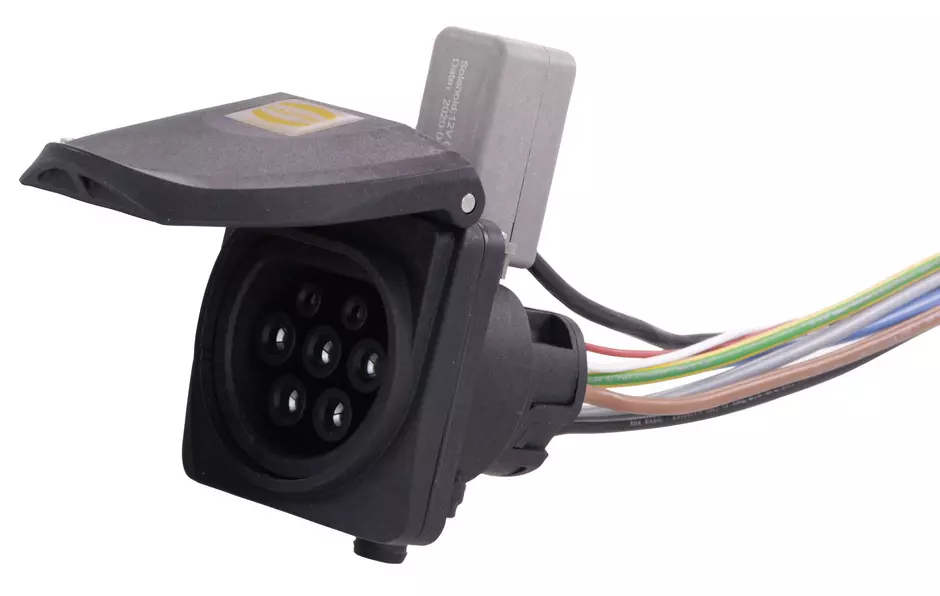

TYP2 SOCKET 3PH MAG LOCK HARTING LOGO

Article No.: 08 96 803 0001 A0

New

Image is for illustration purposes only. Please refer to product description.

New

Mode 3

Article No.: 08 96 803 0001 A0

to see prices and availability.

to see prices and availability.

Mode 3

Charging socket

Type 2, with magnetic locking (solenoid)

This product is not orderable anymore.

Please contact your local distribution partner.

Identification

Element	Charging socket
Specification	Type 2
Specification	with magnetic locking (solenoid)
Charging mode	Mode 3

Version

Technical characteristics

Rated current (signal)	2 A
Rated voltage (signal)	30 V
Rated current (power)	32 A
Rated voltage (power)	480 V
Type of current	AC
Charging power	‌ 22 kW
Ambient temperature	-30 ... +50 °C in operation
Ambient temperature	-40 ... +80 °C storage/transport
Insertion force	< 100 N
Withdrawal force	< 100 N
Mating cycles	≥ 10,000
Degree of protection acc. to IEC 60529	IP44 mated condition
Degree of protection acc. to IEC 60529	IP55 Closed
Impact resistance level	IK08
Conductor length	‌ 70 cm

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	20
Net weight	0.001 kg
Country of origin	Latvia
European customs tariff number	85366990
GTIN	5713140288249
eCl@ss	27144792 Charging components E-Mobility (accessories)
ETIM	EC002884
UNSPSC 24.0	25175003
