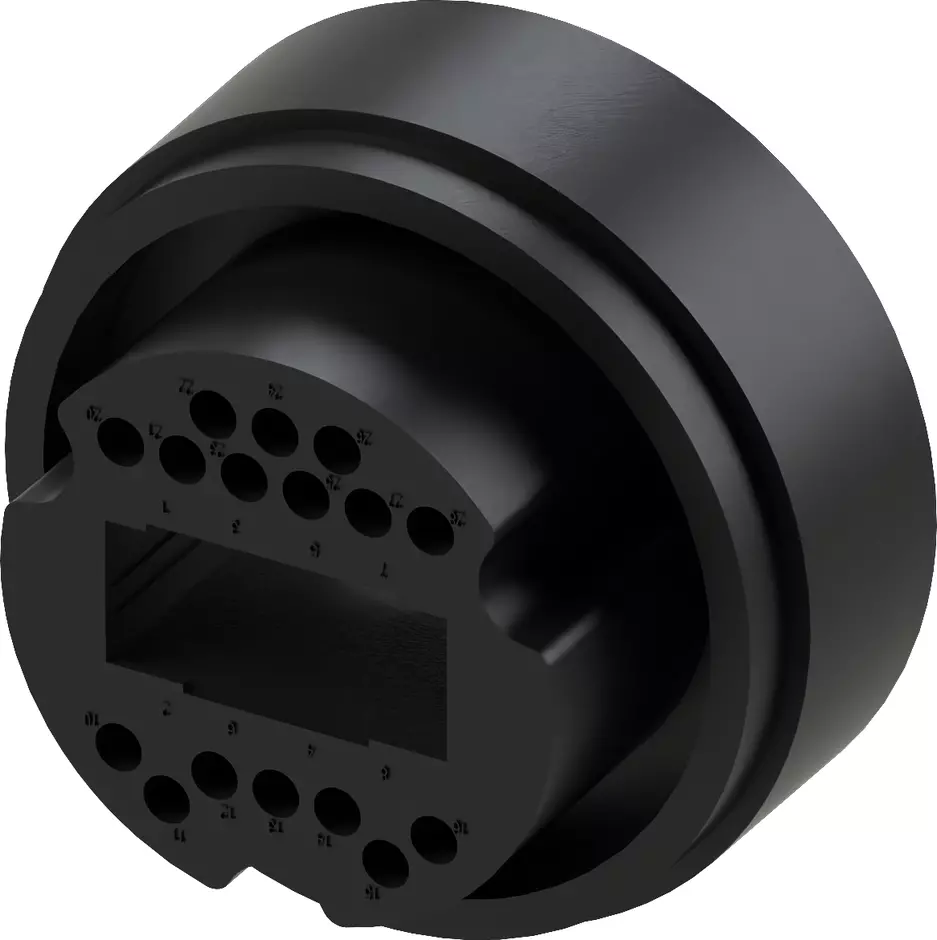

UICIT_8/16_HMC_FI_CRT_0,09-1,5mm²

Article No.: 09 58 024 3101

New

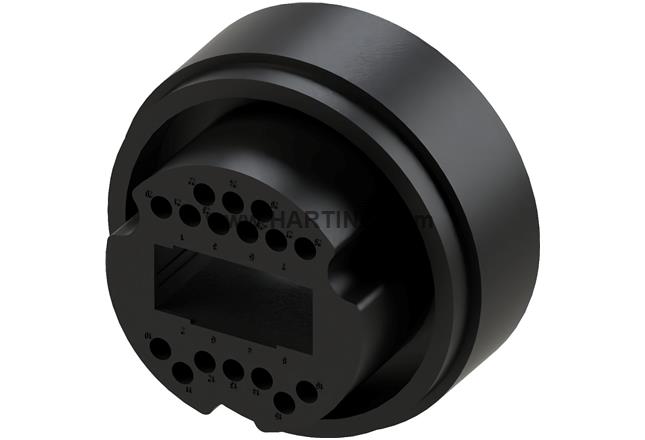

Image is for illustration purposes only. Please refer to product description.

New

Inserts

Article No.: 09 58 024 3101

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Polyamide (PA)

Black

Contacts: 24

Conductor cross-section: 0.08 ... 0.21 mm² Data 1 mm² Signal

Identification

Version

Termination method	Crimp termination
Gender	Female
With wire protection	false
Number of contacts	24
Details	Please order crimp contacts separately.
Details	Please order moduls separately.

Technical characteristics

Conductor cross-section (mm²)	0.08 ... 0.21 mm² Data
Conductor cross-section (mm²)	1 mm² Signal
Conductor cross-section (AWG)	AWG 28 ... AWG 24 Data
Conductor cross-section (AWG)	AWG 18 Signal
Rated voltage (data)	50 V
Rated current (signal)	10 A
Rated voltage (signal)	100 V
Rated current (data)	1 A
Insulation resistance	>10⁷ Ω
Limiting temperature	[-50] ... [+125 °C]
Mating cycles	10000
Transmission characteristics	Cat. 7_A Class F_A up to 1,000 MHz
Transmission characteristics	Cat. 8 Class II up to 2000 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s
	25 Gbit/s
	40 Gbit/s

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	47.8 g
Country of origin	India
GTIN	5713140492196
eCl@ss	27440205 Contact insert for industrial connectors
UNSPSC 24.0	39121522
