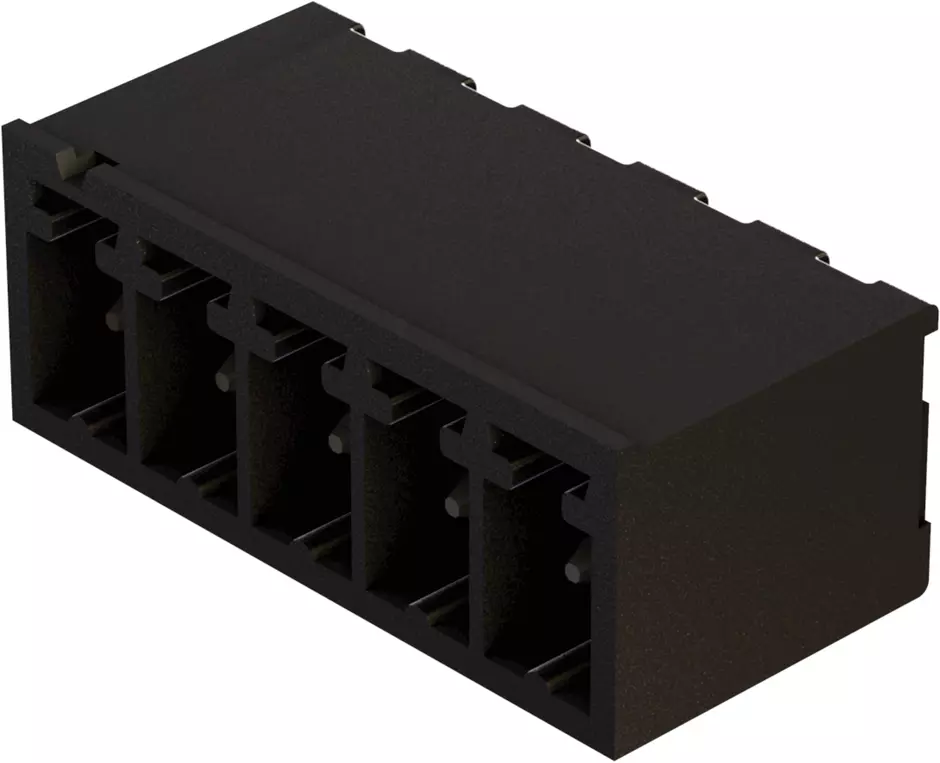

har-flexicon 3,50 MTH-9 BK

Article No.: 14 12 091 4002 000

Image is for illustration purposes only. Please refer to product description.

Header

Article No.: 14 12 091 4002 000

to see prices and availability.

to see prices and availability.

Header

Horizontal

Reflow soldering termination (THR)

Rated current: ‌11 A

Contacts: 9

Copper alloy

Sn over Ni Mating side, Sn over Ni Termination side

Coding: Please order coding pins separately.

Polyamide (PA), Polyphthalamide (PPA)

Black

Identification

Version

Termination method	Reflow soldering termination (THR)
Connection type	PCB to cable
Number of contacts	9
Coding	Please order coding pins separately.

Technical characteristics

Contact rows	1
Contact spacing (termination side)	3.5 mm
Rated current	‌ 11 A
Rated voltage	150 V
Rated impulse voltage	2.5 kV
Pollution degree	3
Insulation resistance	>10⁹ Ω
Contact resistance	≤ 15 mΩ
Limiting temperature	-40 ... +110 °C
Insertion force	≤ 27 N
Withdrawal force	≥ 13.5 N
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Polyamide (PA)
Material (insert)	Polyphthalamide (PPA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Sn over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained

Specifications and approvals

Commercial data

Packaging size	100
Net weight	1 g
Country of origin	Italy
European customs tariff number	85366990
GTIN	5713140114050
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
