har-flexicon 5,08 FSV-3 GN

Article No.: 14 31 031 7401 000

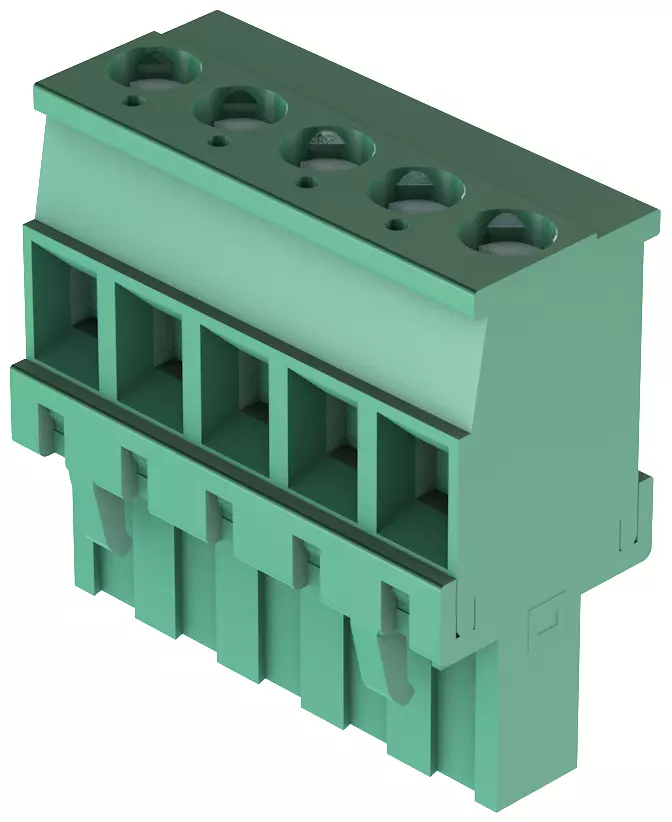

Image is for illustration purposes only. Please refer to product description.

Connector

Article No.: 14 31 031 7401 000

to see prices and availability.

to see prices and availability.

Connector

Vertical

Screw termination

Rated current: ‌15 A

Contacts: 3

Copper alloy

Sn Mating side

Coding: Please order coding pins separately.

Polyamide (PA), Polyphthalamide (PPA)

Green

Identification

Version

Termination method	Screw termination
Connection type	PCB to cable
Number of contacts	3
Coding	Please order coding pins separately.

Technical characteristics

Conductor cross-section	0.05 ... 2.5 mm² Solid
	0.05 ... 2.5 mm² Stranded
	0.5 ... 2.5 mm² Stranded, with ferrules, without plastic sleeve
	0.1 ... 2.5 mm² Stranded, with ferrules, with plastic sleeve
Conductor cross-section [AWG]	AWG 30 ... AWG 12
Contact rows	1
Contact spacing (termination side)	5.08 mm
Rated current	‌ 15 A
Rated voltage	250 V
Rated impulse voltage	4 kV
Pollution degree	3
Stripping length	6 ... 7.5 mm
Tightening torque	0.5 ... 0.6 Nm
Limiting temperature	-40 ... +110 °C
Size	M3
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Polyamide (PA)
Material (insert)	Polyphthalamide (PPA)
Colour (insert)	Green
Material (contacts)	Copper alloy
Surface (contacts)	Sn Mating side
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

UL / CSA	UL 1059 XCFR2.E314677
UL / CSA	CSA-C22.2 No. 158-10 XCFR8.E314677

Commercial data

Packaging size	200
Net weight	5.54 g
Country of origin	Italy
European customs tariff number	85366990
GTIN	5713140209398
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
