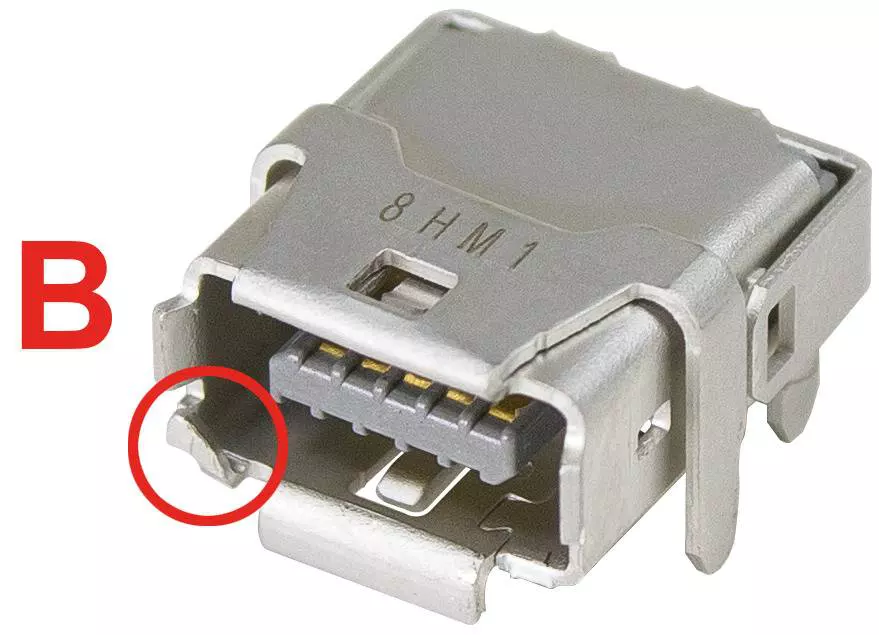

ix Industrial 10B-1 jack AH (T&R550)

Article No.: 09 45 281 9001

Image is for illustration purposes only. Please refer to product description.

PCB connector

Article No.: 09 45 281 9001

to see prices and availability.

to see prices and availability.

PCB connector

Horizontal

Solder termination

Rated current: ‌1.5 A

Contacts: 10

Copper alloy

Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side, Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side

Coding: Type B

Liquid crystal polymer (LCP)

Grey

Identification

Version

Termination method	Solder termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	10
Coding	Type B
Pack contents	On a reel

Technical characteristics

Rated current	‌ 1.5 A
Rated current	3 A per contact when used with 4 contacts (1,2,6,7)
Rated voltage	‌ 50 V AC
Rated voltage	‌ 60 V DC
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Insulation resistance	>500 MΩ
Contact resistance	≤ 30 mΩ
Shielding resistance	≤ 100 mΩ
Limiting temperature	-40 ... +85 °C
Storage temperature	-30 ... +60 °C
Relative humidity	95 % Non-condensing (operation)
Relative humidity	95 % Non-condensing (storage/transport)
Insertion force	≤ 25 N
Withdrawal force	≤ 25 N
Mating cycles	≥ 5,000
Degree of protection acc. to IEC 60529	IP20
Test voltage Ur.m.s.	0.5 kV

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Colour (insert)	Grey
Material (shielding)	Stainless steel
Material (shielding)	Sn ≥ 1 µm over Ni ≥ 0.2 µm Mating side (shielding)
Material (contacts)	Copper alloy
Surface (contacts)	Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side
Surface (contacts)	Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained

Specifications and approvals

Commercial data

Packaging size	550
Net weight	1.52 g
Country of origin	Japan
European customs tariff number	85366990
GTIN	5713140223158
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
