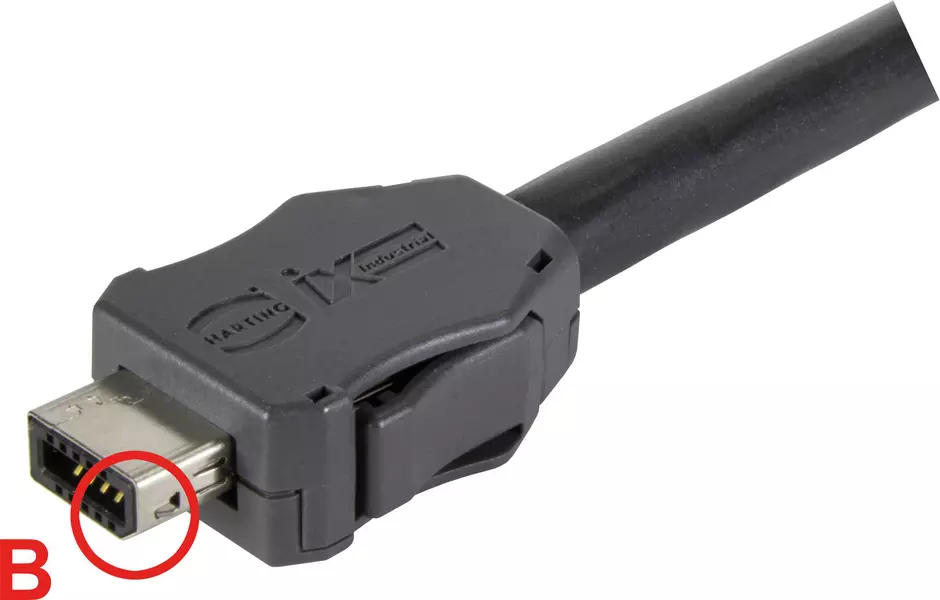

ix Industrial 10B-1 plug SL-S

Article No.: 09 45 181 9000 XL

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 181 9000 XL

to see prices and availability.

to see prices and availability.

Connectors

Cable connector Straight

Solder termination

Rated current: ‌1.5 A

Contacts: 10

Copper alloy

Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side, Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side

Material: Polycarbonate (PC)

Degree of protection: IP20

Identification

Version

Termination method	Solder termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	10
Coding	Type B
Pack contents	Bulk packaging

Technical characteristics

Conductor cross-section [AWG]	AWG 28/7 ... AWG 22/7
Wire outer diameter	≤1.55 mm
Rated current	‌ 1.5 A
Rated current	3 A per contact when used with 4 contacts (1,2,6,7)
Rated voltage	‌ 50 V AC
Rated voltage	‌ 60 V DC
Insulation resistance	>500 MΩ
Contact resistance	≤ 30 mΩ
Shielding resistance	≤ 100 mΩ
Limiting temperature	-40 ... +85 °C
Storage temperature	-30 ... +60 °C
Relative humidity	95 % Non-condensing (operation)
Relative humidity	95 % Non-condensing (storage/transport)
Insertion force	≤ 25 N
Withdrawal force	≤ 25 N
Mating cycles	≥ 5,000
Degree of protection acc. to IEC 60529	IP20
Cable diameter	5.5 ... 7.2 mm
Test voltage Ur.m.s.	0.5 kV
Retention force	≥80 N locking

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (shielding)	Stainless steel
	Ni ≥ 1 µm Termination side (shielding case)
	Ni ≥ 0.2 µm Termination side (shielding shell)
Material (contacts)	Copper alloy
Surface (contacts)	Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side
Surface (contacts)	Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	Grey
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	IEC 61076-3-124
	EN 45545-2
	IEEE 802.3af Power over Ethernet (PoE)
	IEEE 802.3at Power over Ethernet (PoE+)
	IEEE 802.3bt Power over Ethernet (4PPoE)
UL / CSA	UL 1977 ECBT2.E102079
UL / CSA	CSA-C22.2 No. 182.3 ECBT8.E102079

Commercial data

Packaging size	100
Net weight	4.2 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140223288
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
