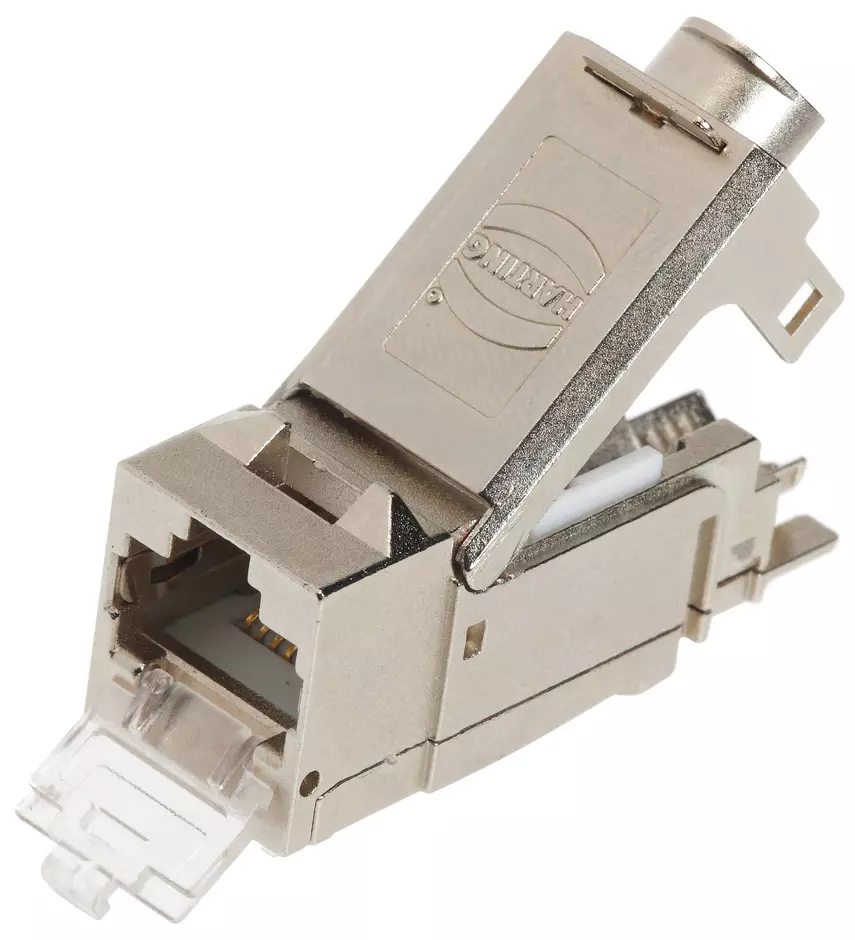

preLink RJ45 Keystone module empty

Article No.: 20 82 500 0001

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 20 82 500 0001

to see prices and availability.

to see prices and availability.

Connectors

Female module

preLink® IDC insulation displacement termination

Size: Keystone version

Conductor cross-section: 0.1 ... 0.12 mm² 0.22 ... 0.32 mm²

Identification

Version

Termination method	preLink^® IDC insulation displacement termination
Size	Keystone version
Details	This item requires additional a termination block. Please select these under “Matching Products”.
Pack contents	24 pieces

Technical characteristics

Conductor cross-section (mm²)	0.1 ... 0.12 mm²
Conductor cross-section (mm²)	0.22 ... 0.32 mm²
Conductor cross-section (AWG)	AWG 27 ... AWG 26
Conductor cross-section (AWG)	AWG 24 ... AWG 22
Limiting temperature	[-40] ... [+85 °C]
Degree of protection acc. to IEC 60529	IP20
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s
Vibration resistance	5.72 m/s² acc. to IEC 61373 Category 1 Class B
Shock resistance	5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

Material properties

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	32.758 g
Country of origin	Latvia
GTIN	5713140135734
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522

Links

Whitepaper	https://www.harting.com/sites/default/files/2023-09/2023-07_WP_preLink-EN.pdf
