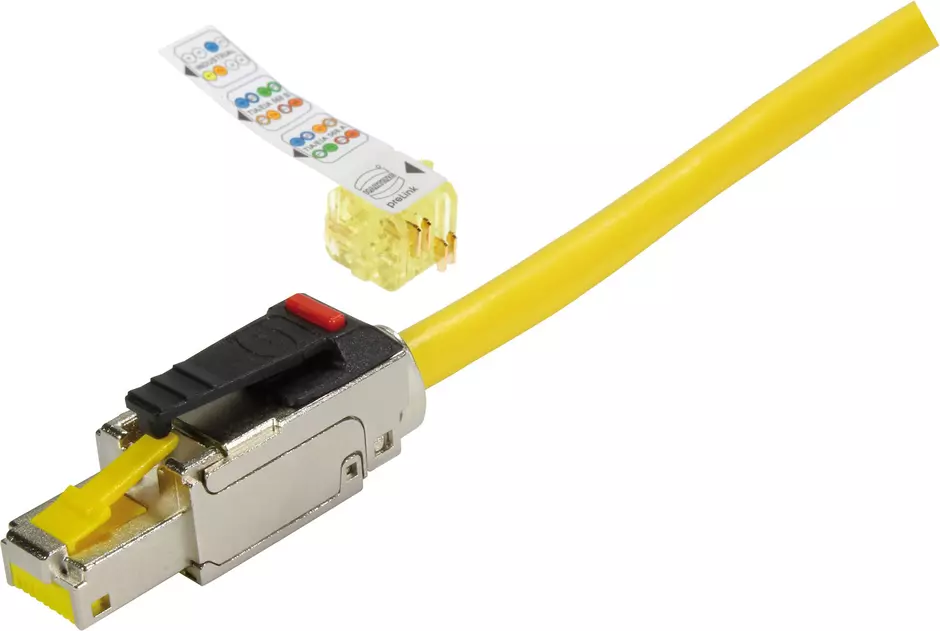

preLink RJ45 plug, IP20 Cat.6A

Article No.: 20 82 101 0010

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 20 82 101 0010

to see prices and availability.

to see prices and availability.

Connectors

Connector RJ45

preLink® IDC insulation displacement termination

Male

Contacts: 8

Degree of protection: IP20

This item requires additional a termination block. Please select these under “Matching Products”.

Identification

Version

Termination method	preLink^® IDC insulation displacement termination
Gender	Male
Shielding	Shielded
Number of contacts	8
Coding	RJ45

Technical characteristics

Conductor cross-section	0.1 ... 0.12 mm²
Conductor cross-section	0.22 ... 0.32 mm²
Conductor cross-section [AWG]	AWG 27 ... AWG 26
Conductor cross-section [AWG]	AWG 24 ... AWG 22
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +85 °C
Relative humidity	95 % Non-condensing (operation)
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP20
Cable diameter	5 ... 9 mm
Vibration resistance	5.72 m/s² acc. to IEC 61373 Category 1 Class B
Shock resistance	5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

Material properties

Material (insert)	Zinc die-cast, nickel-plated
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	22 g
Country of origin	Latvia
European customs tariff number	85366990
GTIN	5713140135635
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
